How to Prevent Tool Changes From Leaving Seams in CNC Relief Carvings

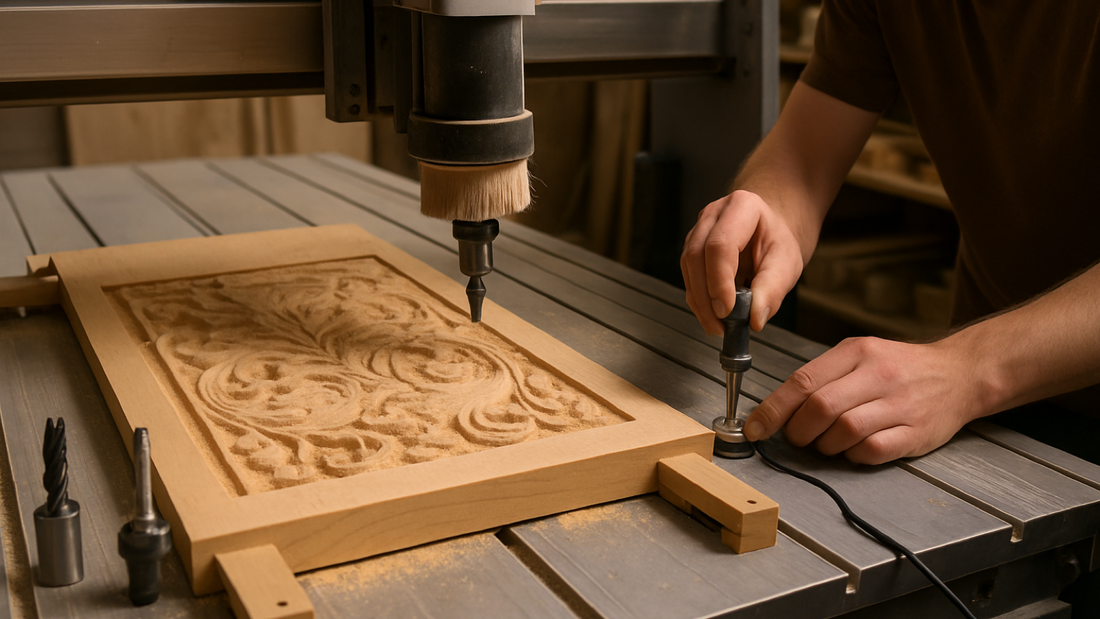

A tool change should not leave a visible border across a CNC relief carving. When it does, the usual causes are not mysterious: the replacement cutter is sitting at a different length, the Z-zero reference has changed, the workpiece moved, or the machine lost position. The result may look like a narrow ridge, a shallow band, or a mismatch where one toolpath ends and another begins.
This guide explains how to diagnose a CNC tool change seam in a relief carving and build a repeatable process that prevents it. The goal is not simply to make one successful project. A professional workflow should produce the same registration after every tool change, on every suitable workpiece.
What a tool-change seam looks like
A registration problem usually has a recognizable pattern. You may see a sharp horizontal or vertical line where the roughing path ends, a section that is visibly deeper than its neighbor, or fine detail that appears offset from the larger relief. A finishing pass can also leave a thin uncut ledge if the cutter is higher than expected.
First, determine whether the defect follows the toolpath boundary. If the seam appears exactly where the roughing and finishing regions meet, suspect tool length, Z-zero, or CAM toolpath settings. If the whole carving is uniformly too deep or too shallow, check the stock surface, spoilboard, and Z reference. If the seam is displaced in X or Y, investigate workholding, lost steps, machine backlash, and coordinate recovery.
For broader causes of ridges and surface defects, see Why Does My CNC Relief Carving Have Ridges, Fuzz or Uneven Detail?. That troubleshooting process helps separate a registration error from feed, speed, stepover, or cutter-condition problems.
The main causes of seams after changing tools
Different tool lengths
Two cutters installed in the same collet rarely extend exactly the same distance. Even a small difference matters in a relief carving because the finishing cutter may be intended to skim a precise surface. If the second tool is 0.5 mm higher than the first, it can leave a visible strip of material. If it is lower, it can cut a groove or flatten detail.
Do not rely on the top of the collet, the router body, or a visual estimate of cutter stick-out as a length reference. Measure the actual cutting tool or use a reliable tool-length measurement system.
Z-zero was re-established inconsistently
If you touch off on the top of the stock for one tool and on the spoilboard for another, the two toolpaths are no longer using the same reference. The same problem occurs when the touch plate is placed on an uneven area, when dust remains beneath it, or when the stock surface varies across the job.
A relief carving needs a clearly defined Z datum. Most shops use either the top of the workpiece or the spoilboard, but the choice must match the CAM setup and remain consistent throughout the project.
The workpiece or spoilboard moved
A tool change often involves stopping the spindle, moving around the machine, or removing a dust shoe. If clamps are loose, tape has failed, or a vacuum fixture has lost pressure, the material can shift slightly. A movement of only a fraction of a millimeter can create a seam that looks like a tool-length problem.
For a detailed workholding check, review CNC Workholding for 3D Relief Carving: Clamps, Screws, Tape and Vacuum. If the job is tiled, registration errors can also occur between tiles; the workflow in How to Tile a Large CNC Relief Carving on a Small Router is useful for diagnosing that type of mismatch.
The machine lost position
Emergency stops, aggressive rapids, a stalled stepper, a loose coupler, or manually jogging with the controller disabled can make the displayed coordinates unreliable. A machine that has lost position may complete the program without an alarm while cutting the second toolpath in the wrong location.
If X and Y registration is wrong, do not try to correct it by changing the tool length. Re-home the machine, verify the work coordinate system, and inspect the mechanical causes before running the finishing path again.
Build a repeatable tool-change procedure
- Choose one Z reference. Decide whether your job is zeroed from the stock surface or the spoilboard. Configure the CAM project and every toolpath around that same datum.
- Prepare the work area. Remove chips from the touch-off area, confirm the stock is seated firmly, and check that clamps, screws, tape, or vacuum hold-down have not changed.
- Record each tool. Note the tool diameter, flute length, stick-out, holder position, and measured tool length. A simple tool log prevents guesswork when a cutter is replaced.
- Measure tool length consistently. Use the machine's tool setter, a calibrated touch plate, or a repeatable manual measuring method. Follow the controller's instructions for whether the measurement is stored as an offset or used to update the current work offset.
- Return to the saved change position. Let the machine move to a safe, known location before changing tools. Do not jog away and assume the controller will recover the exact position unless your workflow explicitly supports that.
- Re-measure the replacement tool. After installing the new cutter, measure it using the same surface and procedure. Avoid touching the measured part of the cutter with oily fingers or allowing chips to remain under the touch plate.
- Verify the work coordinate. Confirm the active coordinate system, X and Y zero, and Z offset on the controller before restarting. A correct tool length cannot fix an incorrect work offset.
- Run a safe verification move. With the spindle off or at a safe height, confirm that the machine returns to the intended start area. Then run a short air cut above the surface if your controller and setup allow it.
For a deeper explanation of toolpath setup and coordinate choices, read How to Carve an STL File on a CNC Router: Complete Beginner Guide.
Use touch plates and tool setters correctly
A touch plate improves repeatability only when its thickness, location, and electrical contact are reliable. Before every measurement, clean the plate and the cutter, place the plate on a known flat area, and confirm that the probe wire is connected. If the plate sits on dust or a loose chip, the machine may measure an artificially high surface.
Check whether your control software expects the touch plate thickness to be entered manually. An incorrect thickness creates a consistent offset on every tool change. Also confirm that the probing feed rate is appropriate and that the cutter makes firm electrical contact without excessive force.
For manual changes, a fixed tool setter or reference block can be more repeatable than touching off directly on a soft wood surface. If you use a reference block, it must remain fixed relative to the machine and be represented correctly in your coordinate workflow. Never assume that a tool setter automatically updates the work offset; some systems measure tool length, while others only report a value for the operator.
Check the CAM setup before blaming the machine
A seam can be designed into the job when two toolpaths use different stock definitions, different Z-zero settings, or overlapping boundaries. Open the CAM file and compare the roughing and finishing operations:
- Confirm that both operations use the same model origin and work coordinate system.
- Confirm that stock-top and model-top references are consistent.
- Check whether one operation includes a machining boundary offset that the other does not.
- Look for an intentional allowance left on the roughing pass. A small allowance is normal, but it must be removed by the finishing path.
- Verify cutter diameter and tool-number assignments. A wrong diameter can create an apparent registration edge even when Z is correct.
- Confirm that the finishing toolpath covers the complete intended surface rather than stopping short at a boundary.
Good cutter selection and conservative settings also matter. The guide to Best CNC Router Bits for 3D Relief Carving explains how roughing and finishing tools serve different purposes, while CNC Relief Carving Settings covers the settings that affect surface quality.
Perform a test cut before committing the workpiece
When a job uses multiple tools, test the complete changeover on scrap from the same material or on an offcut with the same thickness. Include a flat pocket, a shallow step, and a small section of the actual relief. Run the first toolpath, change tools exactly as you will during production, and inspect the transition under raking light.
Measure the test surface with calipers or a depth gauge where practical. If the second tool leaves a uniform ledge, adjust the tool-length measurement process rather than editing the model. If the seam varies across the work area, surface the spoilboard or stock and investigate machine geometry. The article How to Surface a CNC Spoilboard for Accurate Relief Carving explains why a flat reference matters.
Run the machine's normal warm-up routine before testing. Temperature changes can affect spindle behavior, mechanical fit, and consistency, especially on larger machines or long production runs. Record the test result, tool offsets, material, and controller settings so a successful setup can be repeated.
A practical diagnosis table
| Symptom | Most likely cause | First check |
|---|---|---|
| Uniform ledge where tools meet | Tool-length or Z-offset mismatch | Re-measure both tools from the same datum |
| Seam is deeper than the surrounding surface | Replacement tool is too low or zero was set too low | Check touch-plate thickness and stored offset |
| Entire second path is shifted in X or Y | Lost position or workpiece movement | Re-home, inspect workholding, and verify coordinates |
| Seam changes across the board | Uneven stock or spoilboard | Measure surface height and resurface if needed |
| Only one boundary remains uncut | CAM boundary, allowance, or tool diameter issue | Compare operation boundaries and tool definitions |
Preventive habits for professional production
Use dedicated holders or collets for frequently used tools when possible, and keep a written or digital offset record. Mark the intended stick-out with a gauge, but still verify the actual length when accuracy matters. Replace worn collets, inspect spindle taper cleanliness, and remove resin or dust before inserting a holder.
Do not remove the workpiece between toolpaths unless the workflow is specifically designed for it. If a job must be interrupted, save the machine position and document the active offset before shutting down. After a crash or suspected stall, restart from a known reference rather than trusting the displayed coordinates.
Material choice can influence how visible a small mismatch becomes. Woods with strong grain or inconsistent density may disguise some defects while highlighting others after stain or paint. For surface quality and detail retention, compare materials in Best Wood for CNC Relief Carving.
FAQ
Should I re-zero Z after every tool change?
Only if your machine does not use reliable tool-length offsets or a tool setter. If you do re-zero, use the same datum and method every time. Re-zeroing by eye on the surface is not a repeatable professional process.
Can sanding remove a small tool-change seam?
Sometimes, but sanding is not a substitute for correction. A shallow finishing mark may disappear during cleanup, while a depth mismatch can distort the relief and remain visible under stain. Fix the cause before producing the final piece.
Why is the seam visible even though both tools were touched off?
The touch-off may have used different surfaces, an incorrect plate thickness, contaminated contact points, or the wrong active offset. It may also be a CAM boundary or a workholding movement rather than a Z error.
Does dust collection affect tool registration?
Indirectly. A heavy dust shoe, packed hose, or poor chip evacuation can interfere with visibility, probing, or workholding. Keep the area clean and review CNC Dust Collection for Fine 3D Relief Carving for a stable cleanup setup.
Make the changeover part of your quality system
Reliable registration comes from a controlled sequence: stable workholding, a consistent Z datum, measured tool lengths, verified offsets, and a short test cut when the job matters. Once that process is documented, tool changes stop being a source of surprise seams and become a normal part of production.
