CNC Workholding for 3D Relief Carving: Clamps, Screws, Tape and Vacuum

Good workholding is what keeps a promising relief carving from becoming a damaged board, broken cutter, or dangerous loose part. With 3D relief work, the cutter moves across changing heights and often reaches close to every edge, so a clamp that works for a simple pocket may block the toolpath or cause a collision.

The best CNC workholding for 3D relief carving is planned alongside the model, stock, tooling, and finishing strategy. You want the material to stay flat and immobile without placing fasteners, clamps, or adhesive where the cutter will travel. This guide compares common methods for flat panels, small reliefs, thin stock, and carvings that need unobstructed cutter access.

Start with the carving, not the hardware

Before choosing a screw, clamp, or vacuum fixture, inspect the job in your CAM software. Identify the model boundary, roughing area, finishing passes, waste margin, and the lowest safe Z height. Then mark every place where a workholding component could intersect the cutter, collet, spindle, or dust shoe.

This planning step matters especially for decorative panels with relief extending close to the perimeter. A screw may be outside the visible design but still sit under the finishing toolpath. A low-profile clamp may clear the bit but collide with the spindle body when the machine moves into a deep valley.

If you are still setting up your workflow, the complete beginner guide to carving an STL file on a CNC router explains the broader process from model preparation through machining.

A quick clearance check

1. Measure the stock thickness and confirm its top surface is actually flat.
2. Set the work zero and simulate the complete roughing and finishing toolpaths.
3. Check the cutter, collet, spindle, and dust shoe—not only the cutting tip.
4. Allow for stock movement, clamp flex, and the possibility of a small lifted corner.
5. Leave a practical safety margin around screws, clamps, and fixture edges.

Never rely only on a top-down view. Rotate the toolpath simulation and inspect the machine from the side. If a clamp is close to the toolpath, move it before cutting rather than hoping the machine will miss it.

Choosing the right CNC workholding method

Screws: the dependable starting point

Screws are often the simplest reliable option for a flat relief panel. Drive them through the waste area into a spoilboard, or use a perimeter fixture board that holds the stock from outside the finished boundary. Washers or low-profile heads can spread pressure on softer wood.

Place screws where no cutterpath, hold-down shoe, or finished edge will reach them. Do not assume a screw is safe because the model does not cover that exact point; finishing passes can extend beyond the relief, and a bit may move into a boundary allowance. Mark screw locations in your CAM layout before generating toolpaths.

For a two-sided job, use a fixture with repeatable registration pins or reference edges. Drill or install those references before removing the stock. This makes it possible to return the panel to the same position without depending on visual alignment.

Screw workholding safety

• Use screws short enough that they cannot reach the cutter from the underside of the setup.
• Keep fasteners well outside the machining envelope and account for tool diameter.
• Pre-drill near the edge of brittle stock to reduce splitting.
• Check that the screw head cannot catch the spindle or dust shoe.
• Never cut into a screw simply because it is hidden by the model.

Low-profile clamps: flexible but easy to overlook

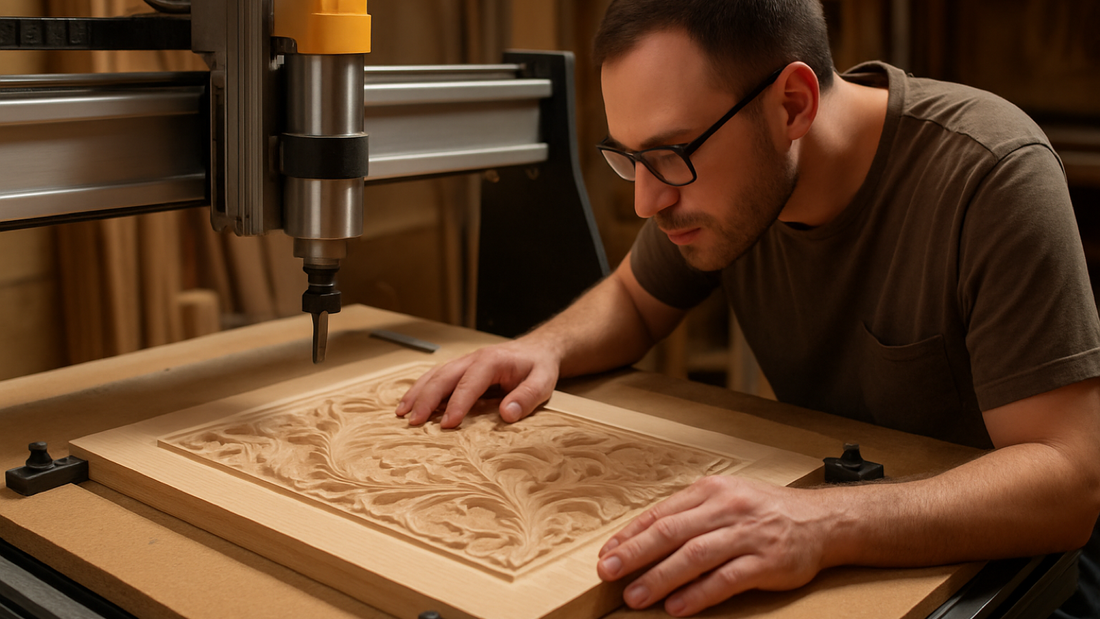

Low-profile clamps work well when you need to change panels frequently or cannot sacrifice holes in the stock. They are particularly useful for roughing a broad flat area, provided the clamp feet sit outside the toolpath.

For 3D reliefs, clamp pressure should be close to the supported area. A clamp at one corner can leave the center or opposite edge free to vibrate. Use a spoilboard that is surfaced flat, support the stock across its footprint, and tighten enough to prevent movement without crushing soft wood.

Watch the entire clamp assembly. The bit may clear the clamp foot while the collet, spindle, or dust boot does not. If the relief runs close to the edge, consider clamping from the sides with a fixture rail or use tape and adhesive instead.

Tape and adhesive fixtures for thin or detailed stock

Double-sided machining tape, often combined with a thin layer of spray adhesive, gives you a clean top surface with no screws or clamps in the cutter's path. It is useful for thin panels, small reliefs, and stock where drilling holes would leave unwanted marks.

The method depends on full contact. Plane or surface both the spoilboard and stock so they mate without gaps. Remove dust, oil, and loose fibers, then apply tape in strips across the board rather than relying on one small patch. Press the stock down evenly, paying special attention to corners and narrow sections.

Adhesive workholding is not automatically stronger than mechanical holding. Test it on scrap when the material is thin, warped, oily, or unusually heavy. A large cutter taking an aggressive side load can overcome a tape fixture even when the panel feels secure by hand.

When tape is a poor choice

• Stock is badly cupped, twisted, or too rough to make continuous contact.
• The machining process generates heavy lateral force or deep roughing cuts.
• The panel is large enough that a hidden loose area could become dangerous.
• Heat, finish, dust, or adhesive residue prevents a reliable bond.

Use a sacrificial fixture board around the perimeter when possible. It lets you combine tape under the panel with screws or clamps outside the finished area, creating redundancy without blocking the relief.

Vacuum hold-down: maximum access for repeat production

Vacuum workholding is attractive for relief carving because there is no hardware above the stock. The cutter can travel across the entire panel, including areas close to the edges. A properly designed vacuum table is especially efficient for repeated production of flat signs, ornamental panels, and shallow reliefs.

Vacuum performance depends on sealing and surface area. Porous materials leak air, narrow parts have less holding area, and a warped board may never seal evenly. Use a spoilboard and gasket layout suited to the stock size, and divide a large table into zones so unused areas do not consume all available vacuum.

Before cutting, check the vacuum gauge or monitoring system and test whether the panel can slide or lift under moderate hand pressure. Keep the pump running during machining and plan what happens if power or vacuum is lost. Vacuum is not a substitute for a safe setup on a small part with very little contact area.

For porous wood, a gasket or sealing coat on the underside may improve performance, but it can also complicate cleanup and finishing. Always test the complete material and fixture combination before committing an expensive panel.

Tabs, onion-skin, and retaining small sections

When the relief is cut from sheet stock or the toolpath nearly separates a small part, the remaining material must be intentionally retained. Tabs leave bridges around the perimeter or between internal sections. An onion-skin strategy leaves a thin layer at the bottom that is removed by hand or with a final pass.

Place tabs in visually acceptable areas, such as the waste border or the back of the finished panel. Keep them away from delicate points and deep valleys where removing a tab could chip the relief. For a thin panel, several small tabs are often safer than two large tabs that concentrate stress.

Do not remove the tabs while the machine is still cutting nearby. Finish the toolpath, stop the spindle, and secure the part before trimming or separating it. If only small islands remain, add a temporary bridge, perimeter frame, or sacrificial surround rather than trusting friction to hold them.

A practical decision tree

1. Is the stock flat and thick enough for screws? Use screws in waste areas or a perimeter fixture, with registration pins for repeat setups.
2. Does the toolpath reach nearly every edge? Choose tape, vacuum, or side clamping so top-mounted hardware stays clear.
3. Is the panel thin, small, or fragile? Favor a full-surface tape fixture, onion-skin, or a well-tested vacuum setup.
4. Is the material porous or warped? Use mechanical support or a hybrid fixture; vacuum alone may be unreliable.
5. Will the part become mostly separated? Add tabs, leave an onion-skin, or keep a sacrificial perimeter until machining is complete.
6. Are you making repeated panels? Invest in a dedicated fixture with stops, registration, and vacuum zones if the production volume justifies it.

Match workholding to the rest of the setup

Workholding cannot compensate for an unsuitable cutter or overly aggressive toolpath. Use a roughing strategy that leaves a consistent finishing allowance, then make finishing passes with appropriate stepover and feed settings. Our guide to CNC relief carving settings covers the variables that affect cutting force and surface quality.

Tool geometry matters too. A suitable roughing bit removes bulk efficiently, while a finishing bit follows the relief detail. See the guide to the best CNC router bits for 3D relief carving before choosing a cutter that may place unnecessary load on a small fixture.

Material choice changes the equation. Stable, close-grained stock generally holds detail and stays predictable under clamping. Compare options in our guide to the best wood for CNC relief carving.

Final preflight checklist

• Stock is flat, clean, and fully supported.
• Every clamp, screw, gasket, and fixture edge clears the complete toolpath and machine hardware.
• The work zero and stock thickness are measured from the actual setup.
• Vacuum, tape, or adhesive has been tested rather than assumed secure.
• Tabs or an onion-skin are planned wherever the part could become loose.
• The toolpath is simulated from multiple angles.
• You know how the finished part will be removed without levering against fragile relief details.

FAQ

What is the safest workholding method for a CNC relief panel?

There is no universal safest method. A supported panel with correctly placed screws is dependable for many jobs, while vacuum or tape may be safer when the cutter must reach the edges. The safest setup is the one that prevents movement and keeps all hardware outside the machine envelope.

Can I use clamps during a full-surface 3D relief?

Yes, if the clamps and their hardware clear the roughing and finishing paths, spindle, collet, and dust shoe. If the relief reaches the perimeter, use side clamping, a perimeter fixture, tape, or vacuum instead.

Should I use screws or double-sided tape for thin stock?

Tape is often better for a thin finished panel because screws can split it or leave holes. Combine tape with a perimeter frame or external clamps when the cutting forces are high, and test adhesion on scrap first.

Do I need tabs for every relief carving?

No. Tabs are needed when the part could shift, lift, or separate during machining. A panel firmly secured over its full footprint may not need them, but small remaining sections should always have a deliberate retention plan.

If you are ready to machine a decorative panel, the ornamental floral panel relief STL and mountain landscape relief STL are practical projects for testing a carefully planned fixture. Form Arcade's commercial-use license can also be relevant if you intend to sell finished CNC-made products; review the license terms for the specific file.

For the next setup, sketch the stock, toolpath boundary, and hardware locations before turning on the router. That few-minute check is often the difference between a clean relief and a preventable workholding failure.
