How to Tile a Large CNC Relief Carving on a Small Router

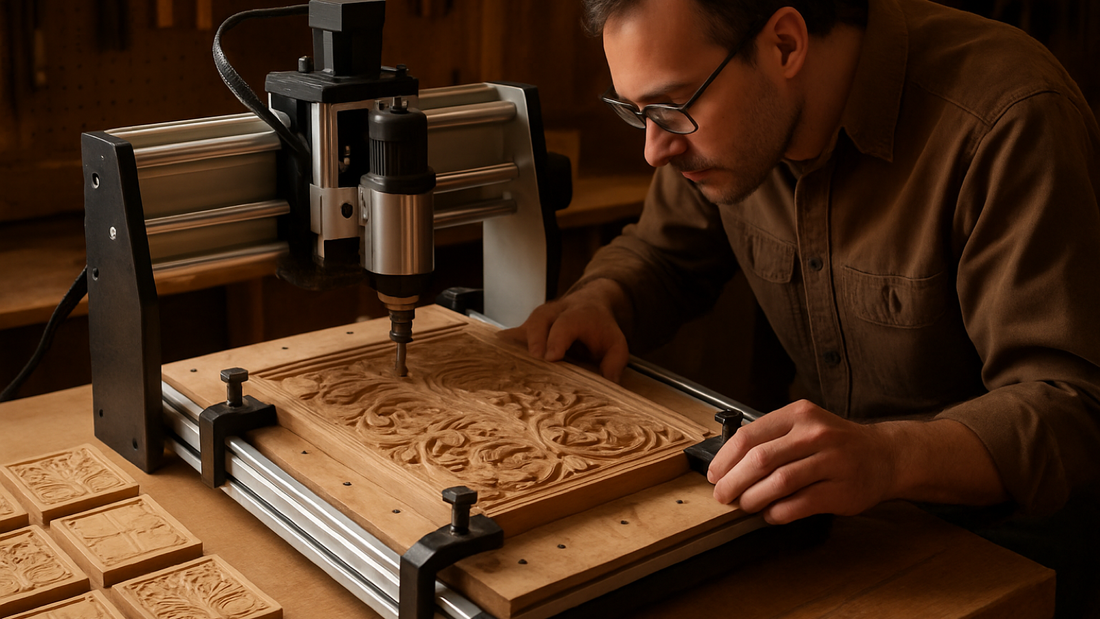

A small CNC router does not have to limit the size of your relief carvings. With a careful tiling plan, you can divide one large scene into smaller sections, machine each section within your router's working area, and assemble the pieces into a single finished panel.

The key is to treat the project as one design from the beginning. Every tile needs the same reference system, consistent material thickness, deliberate overlap, and a reliable way to return to the same machine position. If those details are handled before cutting, the final assembly can look like one continuous carving instead of several separate boards.

This guide explains how to tile a large CNC relief carving on a small router, from sizing the project and planning overlaps to machining, fitting, gluing, and finishing.

What CNC tiling means

Tiling is the process of dividing a large toolpath or relief model into smaller machining areas. Each area, or tile, fits inside the usable X and Y travel of your CNC router. After machining, the tiles are joined edge to edge or mounted to a common backing board.

There are two common approaches:

• Edge-to-edge tiles: Each section ends close to the next section's boundary. This uses material efficiently but leaves little room for alignment errors.
• Overlapping tiles: Each section extends beyond the final boundary into the neighboring section. The overlap provides a safer trimming and blending area and is usually the better choice for detailed reliefs.

Most CAM programs have a tiling or job setup feature, but the exact workflow varies. If you are new to relief toolpaths, review how to carve an STL file on a CNC router before setting up a large multi-tile job.

Plan the relief before creating tiles

Measure the usable machine area

Start with the actual cutting envelope, not the advertised bed size. Subtract room for clamps, screws, the router body, dust collection, and any area your machine cannot safely reach. A router advertised as having a 24-by-36-inch bed may have a much smaller practical work area once the stock and hold-down system are considered.

Write down the maximum safe tile width and height. Then leave a small margin around each tile so the cutter does not approach clamps or machine limits. A conservative tile size is faster than stopping halfway through a job to solve a clearance problem.

Choose the tile direction

For a wide landscape relief, horizontal strips may reduce the number of joins. For a tall scene, vertical columns may be easier to fixture. Consider the grain direction, the most important features in the artwork, and how the finished panel will be mounted.

Avoid placing a seam through a face, animal, hand, lettering, or another high-contrast feature when possible. A seam hidden in a sky, background, border, or deep shadow is much easier to disguise.

Allow for overlap

Overlap is not wasted space. It gives you a shared reference area and lets the finishing pass cross the eventual seam. The correct amount depends on the relief and cutter, but an overlap of roughly 1 to 2 inches is a practical starting point for many wall panels. Use more when the relief has broad flowing surfaces or when your machine's repeatability is uncertain.

Do not confuse machining overlap with the final visible boundary. The overlap is part of the neighboring tile's cutting area; it should be removed, trimmed, or hidden during assembly according to your CAM workflow.

Set up a reliable coordinate system

The most important part of a tiled project is making sure every tile returns to the same design coordinates. Your CAM software should display the complete relief and show each tile's position within it. Keep the model orientation, origin, stock thickness, and Z-zero method identical for every job.

A practical setup uses:

• A consistent X and Y origin, such as the lower-left corner of the full design or each tile's locating corner.
• The same Z-zero reference for every tile, preferably the top surface of the prepared stock.
• A documented tile map showing row, column, machine zero, and the intended assembly order.
• Registration marks or locating holes outside the finished relief area.

Before cutting valuable material, simulate the complete toolpath and inspect every tile boundary. Confirm that the roughing and finishing paths extend into the planned overlap and that no feature is accidentally cut twice or omitted.

Prepare the stock for consistent results

Use stock that is flat, stable, and close to the same thickness across every tile. A thickness difference changes the Z relationship between sections and can create a visible step after assembly. For detailed work, choose a material that holds crisp edges and machines predictably. This guide to the best wood for CNC relief carving can help you compare suitable species.

Joint or surface the stock before machining if needed. If the top is not flat, a finishing pass may remove more material from one part of the relief than another. Also mark the grain direction and inspect each board for knots, cracks, movement, or glue lines that could affect the carving.

Use a spoilboard and repeatable stops

A spoilboard with fixed fences or dowel-pin locations makes tiled work much more repeatable. The stops should be attached to the machine coordinate system, not repositioned by eye for every tile. If the tile is moved, its locating edge or holes must return to the same relationship with the router.

For removable tiles, create a simple fixture with two perpendicular fences. Add registration holes in sacrificial areas of the stock or in a border that will later be cut away. If you use dowel pins, make sure the pins do not interfere with the cutter, clamps, or dust shoe.

Choose a registration method

Registration prevents neighboring sections from shifting during assembly. Use the method that matches your equipment and the amount of accuracy your relief requires.

Method	Best use	Important consideration
Fixed fences	Repeatable placement on the CNC bed	Edges must be square and firmly attached
Dowel pins	Accurate alignment between tiles or a tile and fixture	Drill holes in sacrificial areas and account for pin clearance
Pocket-and-tab alignment	Panels being joined mechanically	Tabs must not show through the finished face
Layout marks	Simple projects with forgiving backgrounds	Least precise; do not rely on marks alone for detailed seams

For most relief wall panels, fixed stops plus dowel-pin registration provide a dependable balance of speed and accuracy. Test the system on scrap first. A pin that is slightly loose can create more movement than expected over several tiles.

Build the tiled toolpaths

1. Import and orient the relief. Confirm that the model scale and orientation are correct before dividing it.
2. Define the complete finished size. Add any border, frame, or margin now rather than trying to extend the design later.
3. Create tile boundaries. Position them in low-risk areas and include the planned overlap.
4. Copy the same machining strategy. Use consistent roughing, finishing, boundary, and cleanup settings across every tile.
5. Set safe holding areas. Keep screws, clamps, and registration holes outside the relief or inside material that will be trimmed.
6. Label every file. Use names such as relief_row1_col2_roughing and keep a printed or written tile map near the machine.

Use a larger roughing cutter to remove bulk material, then a suitable finishing bit for the detail. Your feed rate, depth per pass, stepover, and cutter choice should be tested in the actual material. See this guide to CNC relief carving settings and the explanation of roughing and finishing bits before committing to a large panel.

Machine each tile in a controlled sequence

Run one complete tile at a time unless your CAM workflow and machine setup make another sequence safer. Check the stock, clamps, origin, tool, and file name before pressing cycle start. Never assume that a previous tile's zero is still correct after the workpiece has been moved.

After each tile:

• Vacuum dust without rounding or damaging delicate details.
• Inspect the overlap and the outer edges while the tile is still fixtured.
• Record any issue in your tile map, including a changed zero or tool.
• Keep the tile oriented and labeled so its location cannot be confused later.

If a tool breaks or a power interruption occurs, do not simply restart from memory. Re-establish the machine position, verify the tool length offset, and use the CAM software's restart or re-machining procedure. A small error at this stage can become a noticeable mismatch across a long seam.

Trim, fit, and assemble the panel

Dry-fit all tiles on a flat surface before applying glue. Start with the center or a clearly defined corner and add pieces in their mapped order. Look for steps, gaps, grain changes, and any relief feature that does not flow naturally across a boundary.

Trim only after confirming the tile relationship. A table saw, track saw, router jig, or guided hand tool can produce the final straight edges, depending on the material and your shop setup. Take light passes and support the relief so vibration does not chip raised details.

For a structural panel, glue the tiles to a flat backing board rather than depending entirely on edge joints. Apply even clamping pressure and use cauls or a vacuum bag if available. Keep adhesive away from the relief surface, where dried glue can interfere with stain or paint.

When the adhesive cures, inspect the seams under the same lighting in which the panel will be displayed. Minor joints can often be softened with careful sanding or filler in a background area. Do not aggressively sand across faces, scales, feathers, or other raised details.

Finish the relief consistently

Finish the assembled panel as one piece whenever possible. This helps unify color and hides small differences between tiles. Remove fuzz, glue squeeze-out, and sharp machining edges before applying stain, paint, or clear coat.

Relief carving often benefits from controlled contrast: a darker tone in recesses and a lighter tone on raised surfaces. Test the complete finishing schedule on a scrap piece of the same stock. For a step-by-step cleanup and finishing process, read how to finish a CNC relief carving.

Relief designs that work well as tiled panels

Large scenes with broad backgrounds, borders, and naturally divided subjects are especially suitable for tiling. A dragon and village scene, a mountain wildlife composition, or a Viking ship in a fjord can all be planned as wall art with seams placed in less noticeable areas. Explore these options: Dragon and Villagers CNC Relief STL File, Mountain Bear Landscape Relief STL File, and Viking Ship in Fjord Relief STL File.

If you plan to sell finished carved products made from a purchased design, check the specific license terms first. Form Arcade's commercial-use license is relevant when your intended use permits it, but the license does not remove the need to follow your local business, safety, and product requirements.

Common tiling problems and fixes

A visible step between tiles

Check stock thickness, Z-zero consistency, machine calibration, and whether the fixture returned to the same position. A flat backing board can support assembly, but it cannot fully correct a relief that was machined at different heights.

A gap at the seam

Check whether the edges were square, whether the tiles moved during cutting, and whether the overlap was interpreted correctly in CAM. Trim a test joint before cutting the whole project, and use a backing board to keep the assembly aligned.

The relief detail does not match

Confirm that every tile used the same model scale, origin, tool diameter, finishing allowance, and cutter compensation. Recheck the file names and row-column map before machining a replacement tile.

Glue or filler shows after finishing

Use less adhesive, mask the relief during assembly, and remove squeeze-out while it is still workable. Test filler and stain together because some fillers absorb color differently from the surrounding wood.

FAQ

How much overlap should CNC relief tiles have?

There is no universal number, but 1 to 2 inches is a useful starting range for many projects. Increase it when the surface is highly detailed or when you need more room to trim and blend the seam.

Can I tile a relief without registration pins?

Yes, but fixed fences and pins are more reliable than visual marks. For a detailed panel, use at least one repeatable locating method and test it on scrap before cutting the final stock.

Should I finish the tiles before assembly?

Usually, finish the assembled panel. Pre-finishing can make glue adhesion weaker and can leave visible color differences at the seams. Mask or protect delicate areas while gluing instead.

What if my relief is larger than the machine in both directions?

Divide it into a grid of rows and columns, keep one global coordinate system, and use overlap at every boundary. A tile map and repeatable fixture become increasingly important as the number of sections increases.

Make the next large relief more predictable

Successful tiling comes down to planning rather than cutting speed: measure the real work area, choose smart seam locations, keep stock thickness consistent, use repeatable registration, and inspect every tile before assembly.
