Why Does My CNC Relief Carving Have Ridges, Fuzz or Uneven Detail?

When a 3D relief toolpath is correctly generated but the finished panel still shows ridges, fuzzy edges, seams, or uneven depth, the problem is usually not one mysterious setting. It is normally a small mismatch between the machine, workholding, cutter, and finishing strategy.

The fastest way to troubleshoot CNC relief carving ridges and uneven depth is to classify the defect before changing feeds and speeds. A broad depth change across the entire panel points toward Z-zero, tramming, or spoilboard accuracy. Repeating lines that follow the cutter path suggest stepover, runout, or a finishing-tool issue. Fuzz concentrated around vertical walls is more often caused by wood fibers, a dull cutter, or excessive chip load.

This guide focuses on those deeper causes so you can diagnose the machine and toolpath systematically instead of sanding away evidence of the problem.

Start by reading the defect pattern

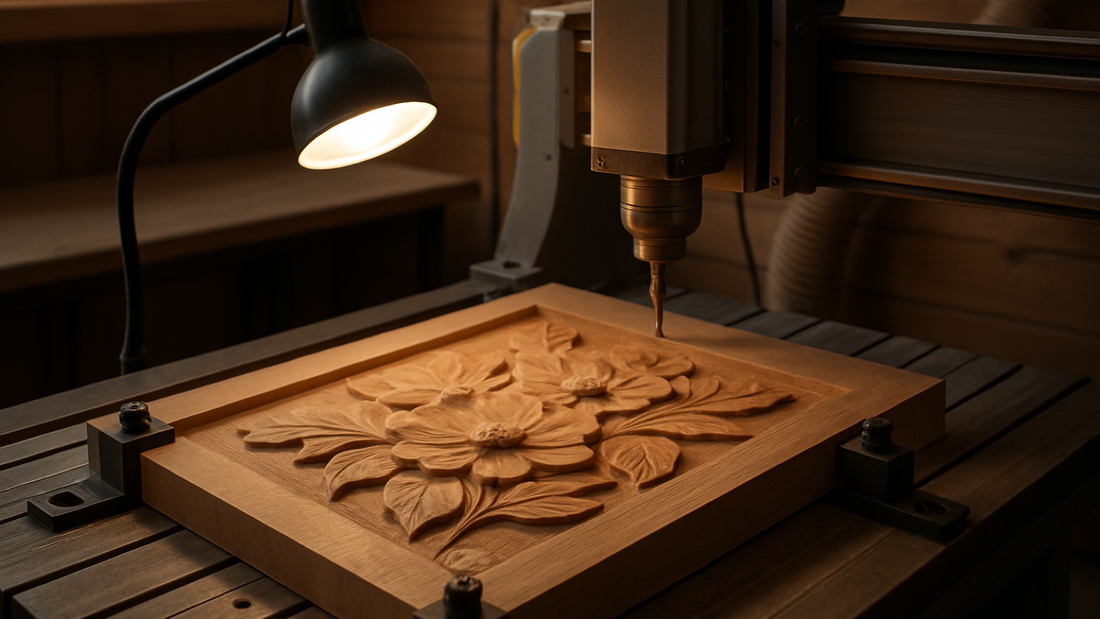

Before making adjustments, vacuum the panel and inspect it under angled light. Photograph the surface before sanding. The direction, spacing, and location of the marks usually tell you where to begin.

Check machine geometry before changing CAM settings

1. Verify tram and gantry squareness

If the spindle is not square to the spoilboard, the cutter removes material at a slight angle. On a flat surfacing pass, that creates a dish, ridge, or stepped edge. On a relief, the same error becomes inconsistent depth: one side of the panel may look crisp while the opposite side is visibly shallow.

Use a rigid surfacing cutter and take a very light pass across a sacrificial board. Look for a raised strip that remains after the pass. A strip usually means the cutter is not sweeping the surface evenly. On a moving-gantry machine, also check that the gantry is square to the rails and that both sides are moving together.

Do not compensate for a tram problem by changing the model height. Correct the mechanical alignment first, then resurface the spoilboard. A precise relief toolpath cannot correct a spindle that is physically tilted.

2. Confirm spoilboard flatness and stock contact

A spoilboard can be flat relative to the machine while still having low spots, compressed areas, or dust beneath the workpiece. If the panel rocks or bridges a hollow, clamping pressure can pull it down near the fasteners and leave other areas unsupported. The Z height then changes as the cutter crosses the board.

Surface the spoilboard over the full working area you actually use. Check it with a straightedge, feeler gauge, or dial indicator, and clean the contact surface before mounting stock. If you use a vacuum table, inspect the gasket and confirm that the panel seals consistently. With screws or clamps, support the panel across its surface rather than relying on pressure at the perimeter.

For a detailed setup sequence, see How to Carve an STL File on a CNC Router.

3. Recheck Z-zero at the actual work surface

A Z-zero error affects every height in the relief. A probe that touches a spoilboard corner, a waste board instead of the top face, or a surface with finish buildup can shift the entire carving. The same is true if the stock is thicker or thinner than the CAM setup assumes.

Zero from the same reference used in CAM. If the toolpath is modeled from the top of the stock, probe or touch off on the top face. If you are using a spoilboard reference, make sure the stock thickness is measured accurately and the model origin matches that reference.

After zeroing, jog to several locations and use a gauge block or slip of known thickness to confirm that the machine reports consistent clearance. A quick air pass above the stock is valuable insurance, but it does not replace a physical check of the work coordinate.

Professional habit: Save the work coordinate, record the stock thickness, and write down the cutter used before starting a long relief job. This makes a good result repeatable and a bad result diagnosable.

4. Check tool runout and spindle condition

Runout makes the cutter orbit instead of rotating concentrically. It increases the effective cutting diameter, produces uneven scallops, and can leave one flute doing most of the work. Small ballnose cutters are particularly sensitive because a tiny amount of runout is significant compared with the tool diameter.

Clean the collet, nut, and tool shank. Inspect the shank for marks, confirm that the cutter is fully seated without bottoming out, and avoid clamping on a reduced portion unless the tool manufacturer permits it. Measure runout with a dial indicator if available. Also listen for spindle-bearing noise and check whether the tool holder is secure.

A sharp, balanced finishing tool matters more than simply choosing a smaller diameter. The guide to the best CNC router bits for 3D relief carving explains how roughing and finishing cutters serve different purposes.

Separate CAM causes from mechanical causes

Scallops are not always a machine fault

Every raster or 3D finishing pass leaves some scallop between adjacent toolpath lines. If the stepover is too large for the cutter diameter and the surface curvature, those scallops become visible ridges. A flat area may look acceptable while sloped petals, lettering, or facial features show obvious bands.

Reduce stepover for the finishing pass, especially on high-visibility areas and steep curves. Smaller stepover improves surface quality but increases machining time, so use it selectively rather than applying an extremely fine value to the entire panel. A second finishing pass at 90 degrees can reduce directional texture when the material and tool allow it.

Do not confuse a normal scallop pattern with a sudden seam. Scallops are evenly spaced across the surface. A seam usually has a sharper boundary and may repeat at a toolpath transition or raster reversal.

Review boundaries, leads, and pass overlap

Uneven detail around the perimeter often comes from a boundary that is too tight. The cutter may stop short of a valley, leave an uncut margin, or make a visible vertical wall where the model transitions to the boundary. Use a boundary that gives the cutter room to reach the intended surface, and consider a small cleanup pass around the edge.

For raster toolpaths, inspect the overlap at pass reversals and any retract or lead-in moves. A toolpath that alternates direction can produce slightly different marks because of cutter deflection and wood grain. If a seam remains, try a consistent climb or conventional strategy appropriate to your machine, or rotate the raster direction for a test piece.

Match the tool to the smallest feature

A finishing cutter cannot reproduce detail smaller than its radius and cutting geometry can physically reach. A large ballnose may smooth broad forms beautifully while rounding narrow grooves and flattening crisp edges. Conversely, an overly small cutter may deflect, chatter, or wear quickly in a large panel.

Use a larger roughing tool to remove bulk, leave a controlled finishing allowance, and reserve the smaller finishing tool for detail that genuinely needs it. Inspect the model at the programmed resolution and compare the cutter diameter with the narrowest valleys and ridges.

Wood species also matters. Dense, short-grain stock can hold crisp detail, while open-grain or soft stock may tear at transitions. Before blaming the toolpath, review which woods hold the most detail.

Fix fuzz, torn edges, and fuzzy bottoms

Fuzz is often a cutting and material problem rather than a depth problem. A dull edge rubs instead of slicing, leaving whiskers along walls and in recessed areas. Excessive feed for the selected RPM, a cutter with the wrong geometry, or cutting against difficult grain can make the effect worse.

• Replace or sharpen the finishing cutter instead of trying to hide wear with higher RPM.
• Use conservative test values and confirm that chips are being cleared rather than recut.
• Inspect the grain direction around raised features and plan a cleanup pass where tear-out is predictable.
• Use a suitable cutter for the material; some tools intended for aluminum or plastics do not leave clean results in wood.
• Make sure dust extraction is not allowing chips to pack into narrow valleys.

Fuzz in a deep pocket can also indicate that the cutter is rubbing because the flute length, angle, or reach is unsuitable. If the tool is buried too deeply, use a longer-reach cutter only when necessary and keep the unsupported length as short as practical.

Rule out workholding and vibration

Loose stock can move by a fraction of a millimeter and still ruin fine relief detail. The result may look like a random ridge, doubled edge, or fuzzy section rather than an obvious shift. Vibration from a thin panel, long tool stickout, weak clamps, or an under-supported workpiece can create repeating waves.

Push-test the mounted stock before cutting. It should not flex, rock, or lift. Place support beneath broad areas, keep clamps clear of the cutter path, and avoid clamping so aggressively that the panel bows. Reduce tool stickout, check the spindle mount, and inspect bearings and fasteners if the pattern repeats at a fixed interval.

For a broader review of cutting values, use this CNC relief carving settings guide, but change one variable at a time. Feeds and speeds can amplify a geometry problem; they rarely solve one.

A practical diagnostic sequence

1. Inspect and photograph the defect. Identify whether it is global, directional, repetitive, or confined to a feature.
2. Check the stock. Confirm thickness, flatness, support, and secure workholding.
3. Verify tram and spoilboard accuracy. Run a light surfacing test and look for a raised strip or uneven cut.
4. Re-establish Z-zero. Use the same datum as the CAM file and verify it at multiple locations.
5. Inspect the cutter and collet. Clean the holder, measure runout if possible, and replace a dull tool.
6. Run a small test panel. Use the same wood, cutter, zero, and finishing strategy as the production job.
7. Adjust CAM in isolation. Change stepover, boundary allowance, raster direction, or tool diameter one at a time.
8. Document the result. Record the machine state and successful settings for future panels.

If you need a reliable subject for a test cut, the Ornamental Floral Panel CNC Relief STL File includes broad forms and smaller decorative details that make surface quality easy to evaluate. For several repeatable patterns, consider the Decorative Patterns 6-Pack CNC Relief STL Bundle.

FAQ

Why are my relief passes visible even with a new bit?

The stepover may be too large, or the cutter may have runout. Confirm the tool is seated correctly, then reduce stepover on a test area. Even a sharp cutter leaves visible scallops if the finishing strategy is too coarse.

Why is one side of the carving deeper?

Check tram, spoilboard flatness, stock contact, and Z-zero. A one-sided depth error is rarely fixed by changing feed rate.

Should I sand away fuzzy detail?

Only after correcting the cause. Light cleanup is normal, but heavy sanding can erase shallow relief and soften edges. For finishing methods, see how to finish a CNC relief carving.

Can I sell products made from purchased relief files?

That depends on the file license. Review the specific commercial-use terms before selling physical products; see this guide to selling items made from purchased STL files.

Make the next carving repeatable

Ridges and uneven detail become much easier to solve when you treat the carving as a complete system. Establish a flat reference, verify tram and Z-zero, secure the stock, control runout, and then tune stepover and boundaries. Change one variable at a time and keep a short job record.

When the machine is aligned and the finishing toolpath matches the relief geometry, the result should need only light cleanup rather than corrective sanding.
