CNC Dust Collection for Fine 3D Relief Carving: Setup, Airflow and Cleanup

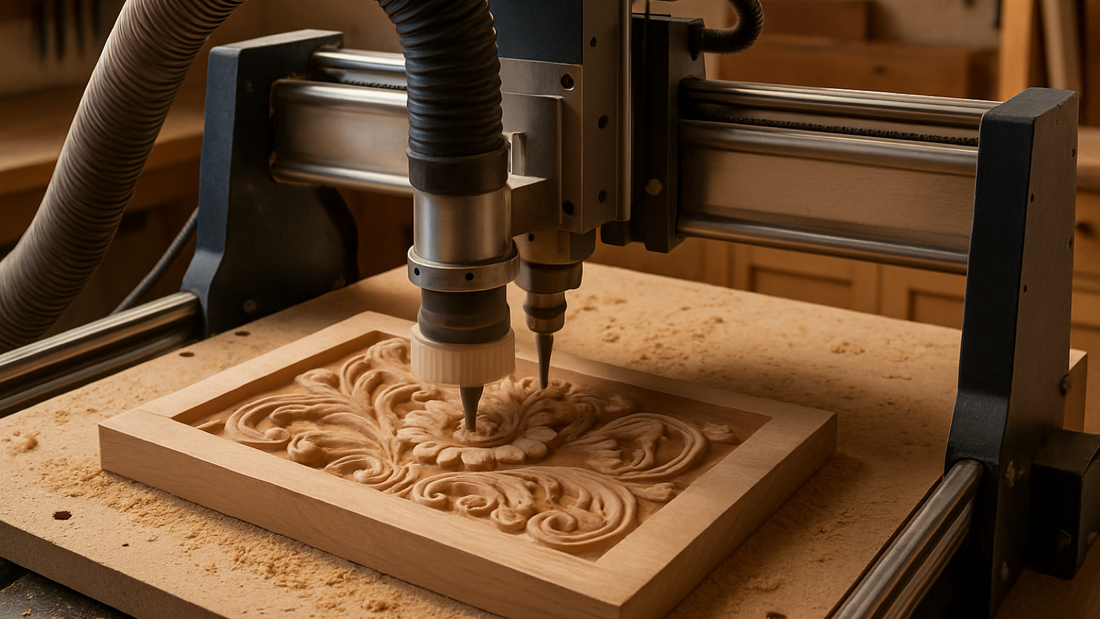

Fine relief carving produces a different kind of cleanup problem than a simple profile cut. A long 3D carving job can create a steady stream of small chips and fine dust around the spindle, while the dust shoe may need to move over deep valleys, raised flowers, and changing surface heights. If your collection setup is too weak, poorly positioned, or difficult to use, dust quickly covers the relief and makes it harder to see what the cutter is doing.

A good CNC dust collection for relief carving setup does more than keep the shop tidy. It helps preserve visibility, reduces the amount of debris that reaches your machine, protects rails and lead screws, and makes long carving sessions more comfortable. This guide walks through the main equipment choices and setup decisions in beginner-friendly terms.

Why dust collection matters during relief carving

Relief carving creates chips across a broad area rather than in one narrow cutting path. A roughing pass may produce larger chips, while a finishing pass with a small ball nose bit can leave fine particles that settle into the details of the design. Those particles can hide tool marks, collect around the cutter, and get dragged across the workpiece by the dust shoe.

Dust collection also matters for machine protection. Fine wood dust can settle on linear rails, rollers, belts, threaded components, and cooling openings. It may not cause an immediate failure, but repeated exposure makes routine cleaning and lubrication more important. Removing debris at the source is easier than trying to clean the entire machine after every job.

Collection is not a substitute for safe operating practices. Wear appropriate eye and hearing protection, use respiratory protection when your shop conditions require it, and never leave a running CNC router unattended. Check your wood, finish, and dust-collector manufacturer guidance before cutting unfamiliar materials.

Choose the collector before tuning the dust shoe

For a CNC router, a dedicated shop dust collector is generally a better match than a small household vacuum. A collector is designed to move a useful volume of air through a larger hose, while a shop vacuum often produces strong suction through a small hose but can struggle with the sustained airflow needed to capture chips across a wide dust shoe.

Key specifications to compare

• Airflow: Look for the manufacturer’s stated cubic feet per minute and consider that real airflow drops when hoses, fittings, blast gates, and filters add resistance.
• Static pressure: This indicates how well the collector maintains suction through restrictions. It matters when your hose run is long or your dust shoe has a narrow outlet.
• Hose diameter: A larger hose usually carries chips more effectively and is less likely to clog, provided the collector can support it.
• Filtration: A fine filter or cartridge filter helps keep captured dust from being exhausted back into the shop. The filter still needs regular cleaning.
• Capacity: A larger collection bag or drum means fewer interruptions during long roughing and finishing programs.

Do not compare collectors using a single advertised number. Airflow ratings may be measured under different conditions, so your actual result depends on the complete system. A shorter, smoother hose route with fewer sharp bends can outperform a larger collector connected through a restrictive setup.

Use a dust shoe that fits the carving job

The dust shoe is the capture point around the spindle. For relief carving, it needs to clear the workpiece without letting chips escape underneath. A brush skirt that is too short may leave gaps around raised areas. One that is too long can drag on the material, interfere with Z movement, or make it difficult to inspect the cutting area.

Choose a shoe that matches your spindle or router body and allows the bit to reach the full programmed depth. Before starting a project, jog the machine through the highest and lowest parts of the relief with the spindle off. Confirm that the shoe does not collide with clamps, the stock, the spoilboard, or any raised feature.

Set the brush height carefully

1. Lower the dust shoe to its normal operating position with the machine powered down.
2. Check that the brush contacts the spoilboard or stock lightly rather than compressing heavily.
3. Move the gantry across the full work area and watch for clamps, hold-downs, and changing workpiece height.
4. Trim or replace damaged brush strips if they create a large opening on one side.

For very deep or highly sculpted reliefs, a flexible brush skirt may seal better than a rigid enclosure. You can also use a removable or hinged shoe when you need to inspect the tool during setup. Avoid modifying a shoe in a way that exposes the rotating cutter.

Route the hose so the CNC can move freely

Hose routing is one of the most overlooked parts of a reliable dust setup. A hose that hangs from the spindle can pull the gantry off course, catch on the frame, or tug the dust shoe away from the stock. These problems are especially noticeable during long finishing passes with constant X and Y movement.

A practical routing checklist

• Support the hose from above with a boom, gantry-mounted arm, or overhead cable-management system.
• Keep the bend radius as large as practical. Tight bends restrict airflow and encourage chips to collect.
• Leave enough slack for the full travel range, but not so much that the hose loops onto the workpiece.
• Separate the hose from motor cables and limit-switch wiring where practical to keep the work area organized.
• Check every corner and travel limit by jogging slowly before running a cutting program.

Use a smooth interior hose when possible. Corrugated hose is flexible and convenient, but its ridges add resistance and can hold dust. Keep the run as short as your shop layout allows, and use gradual fittings instead of several narrow adapters.

Improve airflow around fine relief detail

Good capture depends on air reaching the opening around the cutter. A shoe that is too open allows the airflow to disperse, while one with a very small outlet can restrict the collector. Start with the manufacturer’s recommended hose size and shoe configuration, then evaluate the result on a test area.

When the machine is off, inspect the brush skirt for even contact. During a test cut, watch whether chips are being pulled into the hose or pushed out in a consistent direction. If dust escapes mainly at one corner, look for a bent brush, a warped shoe, a hose restriction, or an uneven workpiece. If the collector sounds strained and the shoe has weak capture, check for a clogged filter or an overly restrictive adapter.

Keep the dust shoe close enough to capture debris, but do not let it press into the relief. On a detailed finishing pass, seeing the cutter and surface can be more useful than maximizing enclosure. If you need a closer look, pause the program using your controller’s normal procedure and inspect only after the spindle has stopped.

Place the collector and manage the power safely

Position the collector where it can be serviced without blocking access to the CNC. Keep the unit stable, allow room around its filter and motor according to the manufacturer’s instructions, and avoid placing it where chips can pile up against hot or moving components. A collection drum or bag should be easy to inspect so you can empty it before it becomes overfilled.

Automatic activation is valuable for repeatability. Depending on your CNC and dust collector, you may be able to use a properly rated controller outlet, remote switch, current-sensing switch, or other approved control method so collection starts with the cutting program. Some CNC systems document connecting dust collection to a switched controller outlet for automatic activation. Follow your machine and collector instructions, confirm the outlet rating, and have an electrician handle changes that require fixed wiring.

Never bypass overload protection or connect a motor to an outlet that is not rated for its startup current. Test automatic switching with the spindle off before relying on it for a real job. A simple startup checklist should still confirm that the collector is running, the hose is connected, and the blast gate is open.

Maintain the filter, hose, and dust shoe

Airflow declines gradually as filters load, which makes maintenance easy to postpone. Make filter cleaning part of your normal CNC routine. Follow the filter manufacturer’s cleaning method rather than beating or washing a filter that is not designed for it. Replace filters when they are damaged, permanently clogged, or no longer maintain useful airflow.

After each substantial relief-carving session, inspect the following:

• The brush skirt for missing, curled, or compressed sections.
• The hose for cracks, crushed areas, loose clamps, and chip buildup.
• The shoe outlet and adapters for blockages.
• The collector bag or drum for safe fill level.
• The machine rails, screws, belts, and spoilboard for escaped dust.

Do not use compressed air to blow dust deeper into bearings, electrical enclosures, or sensitive machine components. Vacuum loose debris with the machine powered down, then perform lubrication and deeper maintenance according to your CNC manufacturer’s schedule.

Make dust collection part of your carving workflow

The cleanest results usually come from combining collection with sensible cutting choices. Keep your stock securely held, use appropriate feeds, speeds, and stepover values, and avoid forcing a dull bit through the material. Our guide to CNC relief carving settings can help you review those variables together.

Bit selection also affects chip size and dust volume. A roughing bit removes material quickly, while a suitable finishing bit helps produce the surface detail you expect. See our guide to CNC router bits for 3D relief carving before starting a new design.

When you are ready to test your setup, begin with a small section or scrap piece made from the same wood. The material matters: some species hold fine detail better than others and produce different chip characteristics. Compare options in our guide to the best wood for CNC relief carving.

FAQ

Is a shop vacuum enough for CNC relief carving?

It can work for a small machine, shallow cuts, or occasional cleanup, but a dedicated dust collector is usually better for sustained airflow and larger dust shoes. Match the collector to the hose diameter and shoe design rather than choosing by motor power alone.

Should the dust shoe touch the carved surface?

It should usually make light contact with the stock or spoilboard through the brush skirt, not press hard into raised relief details. Test full machine travel before cutting.

How often should I clean the filter?

Check it after every significant session and clean it whenever airflow drops or the collector shows a noticeable change in performance. Follow the filter manufacturer’s instructions.

Can automatic dust-collector activation be added to any CNC?

Not automatically. It depends on the CNC controller, collector motor, outlet rating, and approved switching method. Use manufacturer-approved equipment and professional electrical help when needed.

Plan a cleaner, more visible carving session

A reliable dust setup starts with a collector that matches the hose and shoe, continues with balanced routing, and ends with regular filter and machine maintenance. Take time to test the shoe at full travel before your first long program. That small step can prevent a snagged hose, hidden detail, or avoidable interruption.
