How to Surface a CNC Spoilboard for Accurate Relief Carving
If your CNC relief carvings look deeper on one side of the board than the other, the spoilboard may be the problem. A board that looks flat can still have enough variation to affect a shallow relief, especially when the carving covers a large work area.
Learning how to surface a CNC spoilboard gives you a reliable reference plane between the machine and your workpiece. The process is straightforward: install a suitable spoilboard, secure it correctly, surface the top with a fly cutter or spoilboard bit, and repeat the process when the board is no longer flat.
This guide covers the complete beginner-friendly workflow, including work zero, cutter clearance, surfacing passes, troubleshooting, and maintenance.
What a CNC spoilboard does
A spoilboard is a sacrificial layer fitted to the CNC bed. You attach your stock to its top surface, then cut slightly into the board when necessary. That protects the machine bed and gives you a replaceable surface for drilling, pocketing, and through-cuts.
More importantly for relief carving, the spoilboard creates a reference plane. Your CNC uses the machine’s coordinate system and work zero to calculate cutting depth. If the stock sits over a surface that is not parallel to the machine’s motion, the actual carving depth changes as the router travels.
A flat spoilboard does not correct every alignment issue. The gantry, router mount, and machine frame must also be properly aligned. However, surfacing removes one of the most common sources of inconsistent depth.
Materials and tools you will need
- A suitable spoilboard sheet, commonly MDF or another stable, flat panel recommended for your machine
- Mounting screws, threaded inserts, or your machine’s approved fastening system
- A spoilboard cutter, fly cutter, or large-diameter bottom-cleaning bit
- A collet and wrench that match your router or spindle
- A dust collection system or shop vacuum
- A straightedge, ruler, or machinist’s rule for checking the surface
- Eye and hearing protection
- The machine manufacturer’s recommended feeds, speeds, and cutter limits
Choose the cutter based on your spindle or router, machine rigidity, and available clearance. A larger cutter can cover the board efficiently, but it also puts more load on the machine. Never assume a setting from another CNC is safe for yours.
Before you surface the board
1. Check the machine and bed
Before installing the panel, inspect the machine bed for debris, raised fasteners, and damaged areas. A chip trapped under the spoilboard can lift one corner and make the entire panel appear warped. Vacuum the bed and wipe away dust without leaving moisture on the surface.
Confirm that the panel fits within the machine’s usable travel. Leave room for clamps, hold-downs, dust shoes, and the cutter’s full path. A panel that reaches the edge of the bed may be usable, but it gives you less room to secure the work safely.
2. Plan fastener locations
Mark where screws or inserts will go before the panel is fitted. Keep every fastener below the planned surfacing depth and outside the cutter’s path. If you use screws, make sure their heads are countersunk or recessed enough that the surfacing bit cannot contact them.
For a removable spoilboard, use a repeatable layout. Registration holes, dowels, or a carefully documented screw pattern can make future replacement much easier. Do not rely on memory when reinstalling a board that has already been surfaced.
3. Secure the spoilboard without distorting it
Place the panel on the cleaned bed and fasten it from the center outward, alternating sides as you tighten. This helps avoid pulling the board into a bow. Do not overtighten screws, particularly with MDF, because crushed fibers can create low spots around the fasteners.
If the panel is badly bowed, forcing it flat with screws may produce a temporary result. The board can spring back when removed, and the machine may still surface only the high areas. Use a flatter panel or correct the bed support before continuing.
Set up the surfacing toolpath safely
Surfacing is a cutting operation, not a test run. Review the toolpath as carefully as you would a relief-carving program.
- Install the spoilboard cutter securely and verify that the cutter is rated for your spindle or router.
- Measure the cutter diameter if accuracy matters. The value in the CAM software should match the actual cutting diameter closely.
- Set the machine’s work zero at a known location on the spoilboard, commonly the upper-left, lower-left, or center of the panel.
- Set the Z zero from the cutter tip to the current top surface, following your machine’s normal probing or touch-off method.
- Define a surfacing boundary that stays inside the spoilboard edges and clears all clamps, screws, hold-downs, and other hardware.
- Choose a shallow first pass. The initial goal is to identify the high areas, not remove a large amount of material.
- Preview the toolpath and check the cutter’s travel, stepovers, total depth, and any rapid moves.
Keep the surfacing boundary smaller than the board if you are uncertain about edge clearance. You can make another pass later. A cautious setup is much cheaper than a broken cutter, damaged clamp, or gouged machine bed.
Never surface over a fastener unless you have confirmed its exact depth and clearance. A screw that is safe for one shallow pass may become exposed during later maintenance.
How to surface a CNC spoilboard
1. Start with a shallow pass
Load the surfacing program and position the router at the starting point. Before pressing start, verify that the correct tool is installed, the dust shoe will clear the hardware, and the work zero is active.
Run the first pass with a conservative depth. Watch the initial travel closely, but do not place your hands near the cutter. Listen for unusual chatter and be ready to stop the machine if the tool approaches a clamp or screw.
2. Inspect the cut pattern
After the first pass, stop the machine and inspect the surface. Uncut strips indicate that the cutter has not reached the low areas yet. That is normal on the first pass and gives you useful information about the board’s shape.
Look for a consistent, fresh cut across the intended area. If the cutter only marks a few high spots, do not immediately assume the machine is malfunctioning. Continue with shallow passes until the entire usable area has been touched.
3. Repeat passes until the surface is fully cut
Lower the surfacing depth in small increments and rerun the toolpath. Stop when the cutter has cleaned the full working area, including the region where your relief-carving stock will sit. You do not need to remove material from unused edges if doing so would reduce safe clearance.
The goal is not a specific total depth. The goal is a continuous, even surface that is parallel to the cutter’s travel. Removing more material than necessary wastes spoilboard thickness and can expose fasteners.
4. Check the finished plane

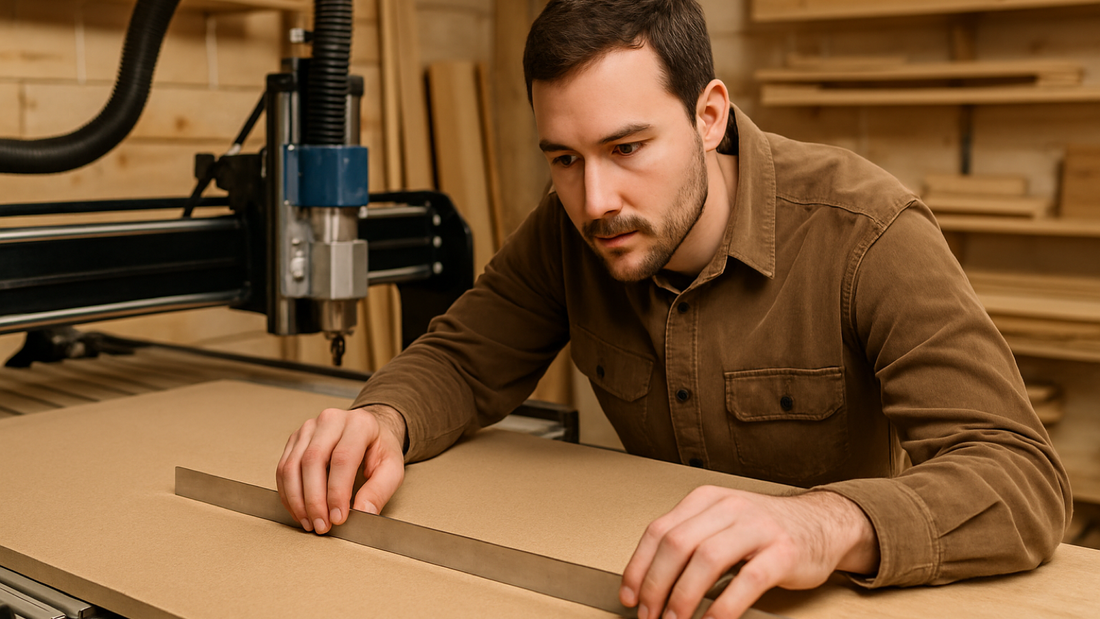

Vacuum the dust and place a straightedge across the board in several directions: front to back, side to side, and diagonally. Look for visible gaps or ridges. A small amount of tool-marking is acceptable; noticeable steps or untouched areas are not.
Use a thin test board or a shallow pocket as a practical confirmation. If the cut depth is consistent at different locations, the spoilboard is doing its job. Do not use your fingers to check for ridges while the machine is running.
Choosing the right work zero for relief carving
For a relief carving, many CNC owners set X and Y zero from a corner or the center of the stock, then set Z zero from the top of the workpiece. This makes the toolpath’s depth correspond to the actual carving stock rather than the spoilboard.
Whichever method you use, be consistent between your CAD/CAM setup and the machine. If your toolpath expects Z zero at the top of the material but you zero at the spoilboard, the carving can cut far too deep. If you zero above the stock, the relief may remain too shallow.
Secure the workpiece firmly and measure its thickness in more than one location. A board with significant thickness variation may need to be planed, shimmed, or surfaced before carving. For more on the cutting workflow, see How to Carve an STL File on a CNC Router.
Common spoilboard surfacing problems
Uncut strips remain after several passes
Check that the toolpath covers the intended area and that the cutter is tight in the collet. Uncut strips can also result from a cutter diameter entered incorrectly, excessive step-over, or a machine that is not square to the bed.
The surface has ridges between passes
Ridges usually indicate too much step-over, a cutter that is not suitable for surfacing, machine flex, or loose hardware. Reduce the step-over, confirm the cutter is sharp, and inspect the router mount and gantry for movement.
The board is flat in the middle but high at the edges
That pattern can come from a bowed panel, uneven bed support, or surfacing that did not extend far enough. Check the panel before installation and review your boundary. Keep a safe margin, but make sure the useful carving area is fully covered.
The carving depth still varies
Recheck the spoilboard, stock flatness, machine tram, and Z-zero procedure. Also inspect whether the workpiece is rocking under clamps. A flat spoilboard cannot compensate for a warped board or a router that is not perpendicular to the table.
How to maintain a surfaced spoilboard
- Vacuum chips regularly so debris does not hold future stock above the reference plane.
- Use hold-downs that cannot interfere with the cutter or dust shoe.
- Mark known screw zones and avoid them when creating new toolpaths.
- Re-surface only as much as needed after deep pockets or accidental cuts.
- Check the surface with a straightedge whenever carving depth begins to vary.
- Replace the board when it becomes too thin, damaged, or difficult to secure safely.
A spoilboard is consumable, so small scars are not a failure. What matters is maintaining a known, usable plane and keeping fasteners below the cutting area. Your carving settings still matter; review CNC relief carving settings when tuning feeds, speeds, stepover, and depth per pass.
Frequently asked questions
How often should I surface a CNC spoilboard?
Surface it whenever the board develops noticeable high or low areas, after a deep accidental cut, or when your relief-carving depths become inconsistent. Frequency depends on how often you cut and how aggressively you use the board.
Can I surface MDF with a router bit?
Yes, if the bit is designed for the operation and rated for your machine. Use dust collection and follow the cutter manufacturer’s limits. MDF creates fine dust, so avoid running the machine without suitable extraction and respiratory protection practices.
How much material should I remove?
Remove the minimum amount needed to clean the working area. A shallow first pass followed by small increments is safer than trying to flatten a badly bowed panel in one cut.
Does a surfaced spoilboard make the machine perfectly square?
No. It improves the reference surface but does not replace machine tramming, gantry alignment, or accurate work holding. If the cutter leaves ridges or the board is not parallel to travel, inspect the machine alignment too.
Make consistent relief carving part of your workflow
A properly surfaced spoilboard turns work zero into a dependable starting point. Once the bed, stock, and toolpath are all referenced correctly, relief carvings are much easier to repeat and troubleshoot.
When you are ready to choose stock, compare the best woods for CNC relief carving and select a bit suited to your roughing and finishing passes.
