CNC Relief Carving on MDF and HDU: When Painted Sign Materials Beat Hardwood

Hardwood is an excellent choice for CNC relief carving, but it is not always the most efficient choice for a painted sign or architectural panel. When the finished piece will be primed, painted, installed indoors, or produced repeatedly, MDF and HDU can offer a more predictable surface and a simpler production workflow.

This guide compares CNC relief carving on MDF and HDU for intermediate CNC owners. The goal is not to declare one material universally better. It is to help you choose the substrate that matches your relief depth, detail, tooling, finishing process, installation conditions, and commercial expectations.

Why use MDF or HDU for a relief carving?

Both materials are engineered to be consistent. Unlike many solid boards, they do not have changing grain direction, knots, or dramatic differences between earlywood and latewood. That consistency can make toolpaths easier to predict and repeat.

They are especially useful when the final design will be covered with primer and paint. A painted relief panel does not need attractive natural grain, and the uniform substrate can make a carved floral, geometric, or architectural pattern look more controlled after finishing.

• MDF: Dense, affordable, widely available, and suitable for indoor painted panels and many sign applications.
• HDU: A rigid, closed-cell sign foam designed for exterior sign work, dimensional lettering, and carved details.
• Hardwood: Better when visible grain, natural color, furniture-grade appearance, or a premium unpainted finish is central to the product.

For a natural-wood comparison, see our guide to the best wood for CNC relief carving. MDF and HDU become compelling when repeatability and paintability matter more than grain.

MDF vs HDU: the practical comparison

These are general tendencies, not substitutes for the manufacturer’s technical data. HDU products vary considerably in density and intended use. Always confirm the material’s machining, coating, and exterior-rating recommendations before quoting a job.

When MDF is the better choice

Choose MDF for indoor painted relief panels

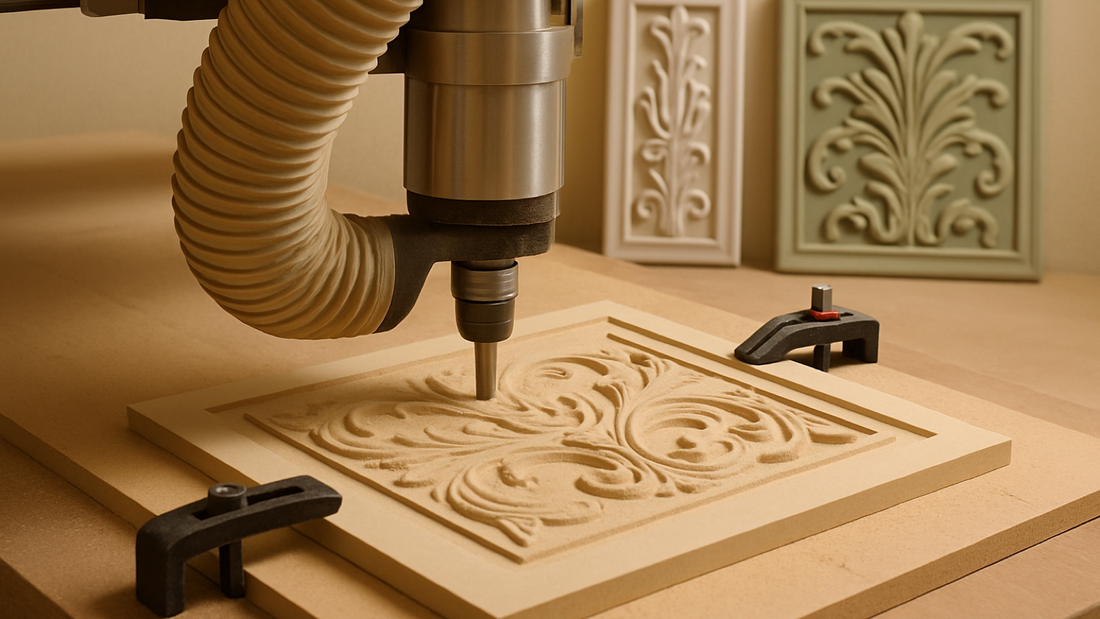

MDF is a practical substrate for wall art, decorative panels, cabinet inserts, theater scenery, and other indoor work. It is inexpensive compared with many sign foams, available in useful sheet sizes, and stable enough for a well-supported panel.

Its uniform composition makes it suitable for reliefs with broad flowing forms, ornamental details, and moderate depth. A high-quality panel can look excellent under a sealed primer and multiple coats of paint.

Use MDF when material cost matters

For prototypes, customer samples, or a product line with tight margins, MDF can reduce material cost. It is also useful when you are developing a new toolpath and want to test composition, scale, or finishing without consuming expensive stock.

There are tradeoffs. MDF edges can be fragile, and the fibers may fuzz or tear if the tool is dull, the feed is poorly matched, or the finishing pass is too aggressive. It also produces fine dust, so dust collection is not optional. Our guide to CNC dust collection for fine relief carving covers airflow and cleanup considerations.

Understand MDF’s moisture limitation

Standard MDF is not a naturally weatherproof sign material. Paint on the face does not automatically protect every edge, pocket, fastener hole, or cutout. If MDF will be used where condensation, rain, or repeated humidity is possible, choose a moisture-resistant product only when appropriate and seal every exposed area according to the coating manufacturer’s instructions.

When HDU is the better choice

Choose HDU for exterior sign work

HDU is widely used for dimensional signs because it does not absorb water like wood-based sheet goods and can be shaped into raised lettering, recessed backgrounds, beveled borders, and relief artwork. A properly prepared and coated HDU sign can perform well outdoors.

“Weatherproof” still depends on the complete system: substrate, primer, paint, seams, mounting hardware, drainage, and installation. Follow the HDU manufacturer’s recommendations rather than treating every polyurethane foam board as interchangeable.

Use HDU for large, deep, or repeatable reliefs

HDU is often a strong choice when you need to reproduce the same design many times. Its consistent structure reduces surprises from grain and allows efficient machining with relatively low cutter wear. It can also be easier to handle than a comparably thick solid-wood panel.

That does not mean HDU is indestructible. Low-density foam can dent, crush under clamps, or lose crisp edges if the tooling is too large, the chip load is inappropriate, or the panel is not supported across its full area. Select density based on the detail and handling demands of the job.

How material choice changes your CNC workflow

1. Prepare a flat, stable surface

Relief carving is sensitive to stock thickness and Z-zero accuracy. A bowed sheet can make one side of a design shallow and the other side unexpectedly deep. Surface your spoilboard and check the stock before setting the origin. If you need a refresher, read how to surface a CNC spoilboard for accurate relief carving.

For MDF, support the sheet continuously to prevent vibration and edge damage. For HDU, use broad clamping pressure or a suitable adhesive workholding method rather than narrow clamps that can compress the foam. More workholding guidance is available in our CNC workholding guide.

2. Start with conservative toolpaths

Use a roughing pass to remove bulk material, then leave a consistent allowance for the finishing pass. A ball-nose cutter is common for curved relief surfaces, while a smaller ball-nose tool can resolve tighter valleys and ornamental details.

MDF usually rewards sharp, clean tooling and effective chip evacuation. HDU can machine quickly, but its lighter chips may recut if airflow and extraction are poor. Rather than copying one universal feed-and-speed chart, run a controlled test in the exact material and density you will use.

For planning, review CNC relief carving settings and the guide to roughing and finishing bits. A test coupon is cheaper than discovering a problem in the center of a production panel.

3. Pay attention to stepover and grain-free edges

Because MDF and HDU do not have wood grain, you avoid grain-direction changes, but visible machining marks can still appear. A large stepover may leave ridges on broad slopes, while an unnecessarily small stepover increases cycle time without improving the finished result.

Test the stepover at the viewing distance of the final sign. A panel intended to be seen from several feet away may not need the same finish pass as a small decorative object viewed close up. If you see ridges, fuzz, or uneven detail, use the troubleshooting steps in this relief-carving guide.

4. Plan for panel size and repeatability

Large sign panels may exceed your machine’s work area. You can tile the design, but the registration strategy must be reliable. Use clear locating features, a repeatable datum, and enough overlap to hide seams in the design. Our guide explains how to tile a large CNC relief carving.

For repeat production, record the material thickness, tool numbers, work zero, roughing allowance, finishing stepover, hold-down method, and finishing schedule. That documentation is often more valuable than a single successful first article.

Finishing MDF and HDU for painted results

Painted relief work succeeds or fails during preparation. Vacuum the panel, brush out recesses, and inspect the surface under raking light. Do not assume paint will hide deep tool marks or torn edges; it often makes them more visible.

1. Remove defects: Lightly sand accessible flats and edges, then repair dents, torn fibers, or unwanted seams with a compatible filler.
2. Seal appropriately: MDF edges are especially absorbent and may need extra sealer or surfacer. HDU generally needs a primer designed for the specific foam and finish system.
3. Sand between coats: Use the coating manufacturer’s recommended grit and drying time. Avoid rounding crisp relief edges through excessive hand sanding.
4. Prime thoroughly: Work primer into pockets and vertical walls without flooding the detail.
5. Apply the finish coat: Spray, roll, or brush according to the desired texture and the product data sheet.

For a complete cleanup and paint workflow, see how to finish a CNC relief carving. If your design needs a durable clear or exterior coating, test the complete stack on scrap first.

Which material should you choose?

Choose MDF when the project is primarily indoors, painted, cost-sensitive, and made from readily available sheet stock. It is a sensible starting point for prototypes, decorative wall panels, and small production runs.

Choose HDU when low tool wear, exterior sign requirements, dimensional scale, or repeatable commercial production justifies the higher material cost. HDU is particularly attractive when the customer values a carved, painted surface but does not need visible natural wood.

Choose hardwood when the grain is part of the product, the panel will be displayed as a natural material, or the project needs the feel and perceived value of solid wood. The best material is the one that supports the finished product—not simply the one that machines most easily.

For a quick design starting point, consider a tested relief such as the Abstract Wavy Acoustic Panel Relief STL or Ornamental Floral Panel CNC Relief STL. Confirm the file’s scale, depth, and license terms before using it in a production workflow.

FAQ

Can MDF be used for an outdoor CNC sign?

Standard MDF is generally a poor choice for unprotected outdoor exposure. It can swell when moisture reaches its edges or damaged coating. Use a properly rated substrate and finish system for exterior work, and follow the manufacturer’s instructions.

Is HDU easier to carve than MDF?

Often, yes. HDU typically creates less tool wear and machines with lighter cutting forces, but density varies. Low-density HDU can be damaged by clamps or rough handling, so “easier” does not mean “care-free.”

Do I need different bits for MDF and HDU?

You can often use similar roughing and ball-nose finishing strategies, but the exact geometry, sharpness, diameter, and feeds should match the material. Test each combination rather than assuming a setting that works in MDF will be ideal in HDU.

Can I sell products made from a purchased relief STL?

That depends on the license attached to the file. Review the commercial-use terms before selling physical products or accepting a customer commission. Our guide to selling items made from purchased STL files explains the distinction between personal and commercial use.

Make your next painted relief more repeatable

If you are building a sign or panel product line, run a small MDF and HDU test before committing to a full sheet. Compare edge quality, cycle time, primer consumption, paint coverage, handling damage, and final appearance. Those measurements will give you a more useful answer than material reputation alone.

Once your substrate and finishing system are proven, document the process and reuse it. A repeatable setup is what turns a successful CNC relief into reliable commercial work.
