CNC Relief Rest Machining: How to Use Multiple Tools Without Leaving Uncut Detail

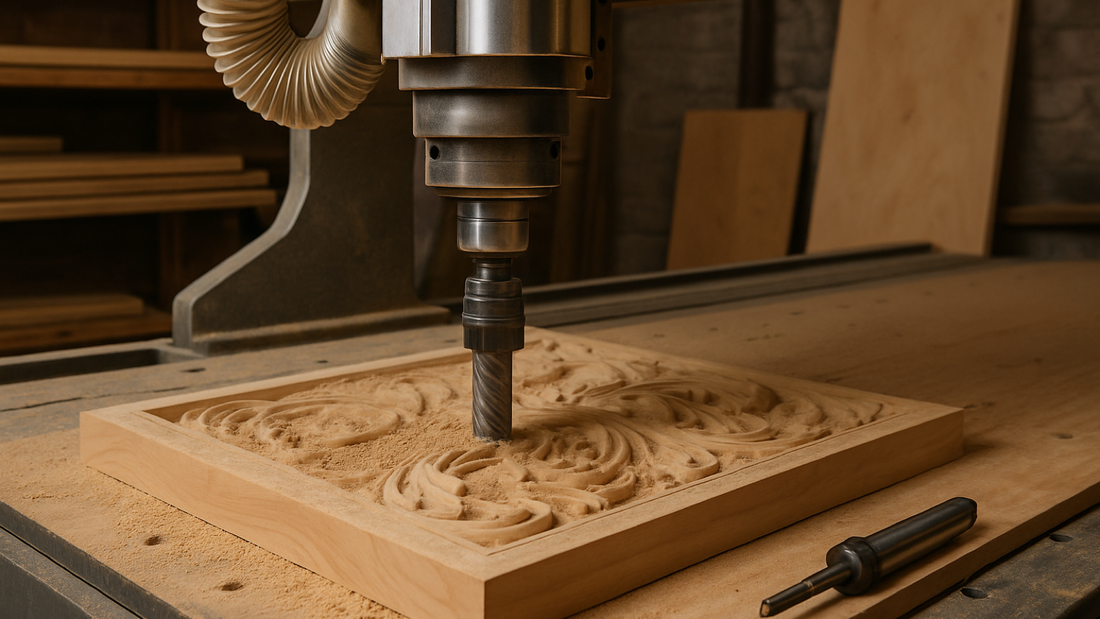

Detailed relief carving is rarely a one-tool job. A large cutter removes the bulk of the stock efficiently, but it cannot reach every valley, corner or narrow ornamental feature. A small finishing cutter can reach those areas, but using it across the entire relief may dramatically increase machining time.
CNC relief rest machining solves that problem by directing a smaller tool only toward material left behind by an earlier, larger toolpath. Instead of recutting the whole model, the machine focuses on the remaining material in tight areas. Used correctly, this multi-tool strategy gives you faster roughing, cleaner detail and more predictable tool wear.
This guide explains how rest machining works, how to plan a reliable tool sequence, and how to troubleshoot the common reasons small areas remain uncut.
What is rest machining?
Rest machining is a remaining-material strategy. CAM software compares the material removed by one toolpath with the shape of the final relief, then calculates where stock still remains. A subsequent toolpath uses that information to cut only the areas the previous tool could not reach.
For example, a 6 mm ball nose cutter may efficiently rough and finish broad surfaces of a relief. However, its radius prevents it from fully entering a narrow groove or the space between two raised details. A 3 mm or 2 mm ball nose cutter can reach deeper into those areas. With rest machining enabled, that smaller cutter does not need to sweep across the already-finished open surfaces.
The exact names vary by CAM package. You may see options such as rest machining, machine remaining material, previous toolpath, 残 material or use previous machining. The principle is the same: calculate the next cut from what the previous operation could actually remove.
Why use multiple tools on a CNC relief?
- Shorter cycle times: large cutters clear broad areas faster, while small cutters work only where their size is useful.
- Better tool life: a small finishing tool is not forced to remove large amounts of stock across the entire job.
- Cleaner detail: narrow recesses and tight transitions receive the cutting diameter they require.
- More predictable results: each tool has a defined role instead of trying to perform roughing and detail work at once.
Rest machining is not a replacement for a sensible roughing allowance or a good finishing strategy. It is the link between them. Your CAM setup still needs accurate stock dimensions, a safe Z-zero, appropriate feeds and speeds, and a tool that physically fits the detail.
A reliable multi-tool sequence
1. Start with accurate stock and model setup
Before calculating any toolpath, confirm the stock thickness, X and Y dimensions, model position and Z reference. Rest calculations depend on the software knowing what material exists and where the relief sits inside it. If the stock boundary is wrong, the calculated remaining material will also be wrong.
Surface the spoilboard and use a flat, stable workpiece. A small variation in stock height can appear as uneven detail, particularly during a shallow finishing pass. If you need to prepare the machine first, review this guide to surfacing a CNC spoilboard for accurate relief carving.
2. Rough with the largest practical cutter
Choose a roughing cutter that removes material efficiently while leaving enough material for the finishing tools. A flat end mill is often useful for clearing, while a larger ball nose cutter may be suitable when the roughing operation also follows curved relief geometry.
Leave a controlled allowance rather than trying to rough directly to the final surface. The allowance depends on your machine, material, tool rigidity and finishing method, but it should be large enough to protect the finishing cutter from heavy engagement and small enough to avoid unnecessary extra work.
Use a 3D roughing strategy with safe linking moves and a clearance boundary. For deeper reliefs, calculate depth in multiple passes rather than asking the tool to remove the entire Z range in one cut. Your feeds, speeds, stepover and depth-per-pass should be based on the actual cutter and material; the CNC relief carving settings guide is a useful reference when checking those values.
3. Finish broad surfaces with a medium tool
After roughing, use a medium-size ball nose cutter to finish the broad slopes and major forms. This tool usually offers a good balance between surface quality and machining time. Select a raster, spiral or other 3D finishing strategy that suits the model and machine.
At this stage, do not automatically choose the smallest cutter available. A small tool with a fine stepover can take many hours over areas that a larger tool can finish adequately. The goal is to let the medium tool complete everything it can reach, leaving only tight regions for rest machining.
4. Calculate the remaining material
In the next toolpath, select the software option for machining remaining material from the previous operation. Some programs calculate this from a selected prior toolpath; others ask for the previous tool diameter, a machining boundary or a calculated stock model.
Check the preview carefully. The small-tool path should appear mainly in narrow valleys, sharp internal transitions and other areas hidden from the larger cutter. If it covers the whole relief, the software may not be using the previous toolpath correctly, the stock model may be missing, or the toolpath settings may be forcing a complete recalculation.
5. Finish tight detail with the smaller cutter
Choose the smallest tool that the geometry actually requires. A smaller ball nose can enter tighter valleys, but it is also more fragile and less tolerant of aggressive cutting. Reduce stepover and engagement as needed, and use a conservative feed while validating the cut.
Rest machining identifies where material remains; it does not guarantee that every tiny feature is physically machinable. If a recess is narrower than the cutter, or if the tool cannot reach it because of holder clearance, some material will remain by design. CAM cannot create geometry that the tool cannot access.
Choosing the right tool progression
| Operation | Typical tool role | Primary objective |
|---|---|---|
| Roughing | Largest practical cutter, often flat or ball nose | Remove bulk stock quickly and safely |
| Primary finishing | Medium ball nose | Finish broad slopes and main forms |
| Rest finishing | Smaller ball nose or tapered ball nose | Reach valleys and tight remaining material |
| Detail pass | Very small cutter only where necessary | Define exceptionally narrow features |
There is no universal cutter combination. A 6 mm, 3 mm and 1.5 mm progression may be appropriate for one sign, while a 12 mm, 6 mm and 3 mm sequence may suit a larger relief. For guidance on cutter geometry and selection, see this explanation of roughing and finishing bits for 3D relief carving.
How to verify a rest-machining toolpath
- Preview each operation separately. View the roughing result, then the primary finish, then the rest pass. This makes it easier to identify which operation left a problem.
- Inspect from multiple angles. Rotate or tilt the simulation view to find uncut ridges on the back side of forms and inside deep pockets.
- Check the cutter diameter and corner radius. A tool may be smaller overall but still unable to reach a narrow feature if its ball radius or holder is too large.
- Confirm the machining boundary. An overly broad boundary can create needless motion; an overly narrow one can exclude important detail.
- Simulate holder clearance. Deep reliefs may require a longer flute or tapered tool even when the cutting diameter appears suitable.
- Run an air cut or shallow test. Watch the first section above the workpiece and verify Z-zero, workholding and tool changes before committing to the full job.
Workholding matters more as the job gets longer. Any movement between tool changes can create a visible step or misaligned detail. Use a method suited to your stock and machine, and review CNC workholding for 3D relief carving before starting a multi-hour cut.
Common rest-machining problems
The small cutter still leaves material
First check whether the area is actually accessible. If the cutter is too large, the toolpath may be correct but physically unable to enter the feature. Also check that the previous toolpath was selected correctly and that the rest calculation uses the actual tool diameter, not a nominal value that differs from the measured cutter.
The small cutter cuts areas that are already finished
This usually indicates that the software is not referencing the previous toolpath or stock model. Review the rest-machining source, recalculate all dependent toolpaths and inspect the simulation. A small amount of overlap is often sensible to prevent a seam, but full-surface recutting defeats the purpose of the strategy.
Fine detail is fuzzy or burned
Small tools produce more delicate chips and are less forgiving of excessive stepover, low chip load, dull edges or poor dust removal. Confirm feeds and speeds, check the cutter condition and clear chips from narrow valleys. The guide to dust collection for fine CNC relief carving covers airflow and cleanup considerations.
Visible ridges remain after the rest pass
Ridges can come from a coarse stepover, tool deflection, insufficient overlap or a finishing path that does not follow the surface effectively. They can also indicate that the smallest tool was used too early and forced to remove too much stock. Compare the simulation with the physical surface, then review common causes of ridges, fuzz and uneven relief detail.
When rest machining is not the best answer
Do not add a small tool simply because the model contains fine-looking geometry. If the detail is below the resolution of your machine, material or chosen tool, a longer program will not make it sharper. It may increase breakage risk without producing a visible improvement.
Rest machining is also less useful when the entire relief is made of narrow, deep features. In that case, a smaller primary finishing tool may be more efficient than repeatedly calculating large-area paths. Compare the estimated machining time, tool changes and surface quality before committing to a complex sequence.
Practical checklist before pressing Start
- Measure the stock and confirm the Z-zero location.
- Make sure the spoilboard and workpiece are flat and securely held.
- Assign each cutter a clear role: bulk removal, broad finishing or detail.
- Leave a consistent roughing allowance.
- Enable remaining-material or rest machining for the detail pass.
- Confirm tool diameters, flute lengths, holder clearance and tool-change offsets.
- Preview every toolpath and inspect tight valleys from multiple angles.
- Save the project and label the exported files in tool-change order.
FAQ
Does rest machining require a 3D relief file?
It requires CAM geometry with depth information, such as a 3D relief model. The specific file format depends on your software. For a broader workflow overview, read how to carve a relief file on a CNC router.
Can I use rest machining with different cutter types?
Yes, provided your CAM software can calculate the previous material state accurately. A flat roughing tool followed by a ball nose finishing tool is common, as is a larger ball nose followed by a smaller one.
Should every relief use a tiny finishing cutter?
No. Use the smallest cutter needed for visible, reachable detail. Smaller tools increase cutting time and breakage risk, so reserve them for areas where they create a meaningful improvement.
Can I sell products made from a purchased relief file?
That depends on the file license. If you use a Form Arcade file, check the applicable commercial-use terms, and compare them with the guidance in this guide to selling items made from purchased files.
Put the strategy into practice
A good CNC relief rest-machining workflow is a controlled progression: remove bulk stock with a large cutter, finish accessible surfaces with a medium cutter, then let a smaller tool target only the material that remains. The result is usually faster and cleaner than asking one small cutter to do everything.
For a ready-to-machine project, explore the Dragon Head CNC relief or the Ornamental Floral Panel CNC relief. Both provide useful practice for planning broad surfaces, recessed features and detail passes.
If your relief workflow is already reliable, try rest machining on a small test area first and compare cycle time against a single-tool finish. That simple test will show where the smaller cutter saves time and where it only adds complexity.
