How to Set Machining Boundaries for CNC 3D Relief Toolpaths

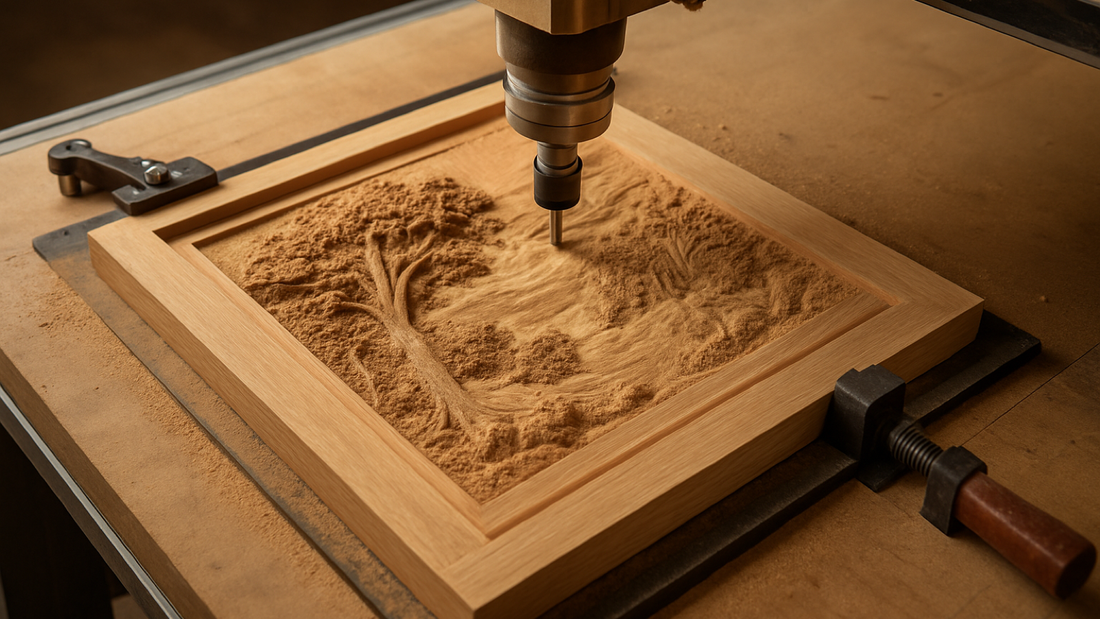

Machining boundaries decide where a CNC toolpath is allowed to cut. Choose the wrong boundary and a finishing tool may sweep across areas that should remain untouched, leave an unwanted rim around the relief, or stop short of important edge detail. The result can be wasted machine time, damaged stock and a great deal of hand cleanup.

For a 3D relief, the boundary is not simply the outside edge of the stock. It is the relationship between the imported model, the material area, any vectors you select and the portion of the model you actually want to machine. Understanding those choices makes your toolpaths more predictable, especially when carving purchased STL files, tiled panels or reliefs placed inside a decorative frame.

This guide explains how to choose a CNC 3D carving machining boundary, verify it in simulation and protect the edges of your workpiece before you press Cycle Start.

What a machining boundary controls

A machining boundary limits the XY area in which a 3D toolpath calculates motion. It does not automatically determine the Z depth of the carving, the thickness of your stock or the shape of the finished relief. Those settings still come from your model setup, material setup and toolpath parameters.

In practical terms, the boundary answers one question: where may this tool cut? A good boundary keeps the cutter over the intended relief and gives it enough room to blend surfaces cleanly. A poor boundary can cause one of four common problems:

• The cutter machines outside the design and wastes time flattening unnecessary material.
• The tool runs into a surrounding frame, clamp area or finished edge.
• The toolpath ends too early and leaves an uncut border or fuzzy perimeter.
• A finishing pass creates a visible seam where its calculation area does not match the roughing area.

Boundary behavior varies slightly between CAM programs. Names such as model boundary, material boundary, selected vectors and selected levels are especially common in Vectric workflows, but the same concepts appear in other software under different labels.

The four boundary choices you need to understand

1. Model boundary

A model boundary follows the imported 3D relief or the rectangular area assigned to the model. It is usually the safest starting point when you want the entire relief machined and the model already fills the intended design area.

Use it when the STL has a clean perimeter and you want the finishing tool to reach the model edge. Check the preview carefully, because an STL may include a flat base, a generous background area or an unexpected rectangular extent. The visible subject is not always the same as the model's true boundary.

For example, a dragon relief may appear to occupy most of a panel while the file also contains a flat border. A model-boundary toolpath can machine that entire area. That may be correct for a full panel, but wasteful if you plan to add a separate frame or preserve a wide margin.

2. Material boundary

A material boundary uses the full stock area defined in your job setup. This is the broadest option and should be selected deliberately, not merely because it is convenient.

It can make sense when you are surfacing the entire blank, blending a shallow relief into a broad panel or intentionally flattening the area around a design. It is usually excessive for a contained decorative relief. A large finishing pass over unused stock increases cycle time and may put the cutter close to clamps, screws or unsupported edges.

If your material boundary is larger than the model, confirm that the extra area is safe to cut. Leave a clear margin around workholding hardware, and do not assume the machine will avoid a clamp just because the clamp is outside the artwork.

3. Selected-vector boundary

A selected vector boundary uses a closed 2D vector that you draw or import around the area to be machined. This is often the most flexible choice for production work because you control the exact perimeter.

Use a selected vector when a relief belongs inside a frame, when you need to preserve a border, or when the model contains background space that should not be cut. The vector should be closed, positioned at the intended XY location and large enough to give the finishing tool room to reach the edge.

Do not draw the vector directly on the final visible edge without considering cutter geometry. A ball-nose cutter needs room to move and blend. If the vector is too tight, the toolpath may leave a thin vertical wall, a fuzzy rim or an uncut strip. If you want a crisp boundary, plan a separate profile, pocket or border operation rather than expecting a 3D finishing pass to create a sharp vertical edge.

4. Selected-level boundary

Some CAM workflows let you limit machining by selecting a level or height range within the model. This is useful when the model has multiple regions or when you want to finish only a particular height band without recalculating the whole relief.

Selected-level controls are helpful for repair work, staged finishing and designs that combine a relief with a flat background. They require careful inspection because limiting the level can leave transitions unfinished if the toolpath does not overlap adjacent surfaces. Use this method when you understand how your software interprets the selected level, not as a substitute for a clear XY boundary.

How to choose the right boundary for a relief

1. Define the finished panel first. Enter the actual stock length, width and thickness. Include a realistic edge margin if the blank will be trimmed after carving.
2. Inspect the 3D model extent. Select the model and check its bounding box. Confirm that the visible artwork, flat base and any built-in border are where you expect them to be.
3. Mark unsafe areas. Identify clamps, screws, vacuum pods, spoilboard gaps and unsupported edges. Your machining boundary must stay clear of them unless the operation is specifically planned around them.
4. Choose the smallest useful boundary. Start with the model boundary for a full relief, or create a selected vector for a contained design. Avoid using the full material boundary by default.
5. Add enough finishing allowance. Give the ball-nose cutter room to reach the intended edge. A tiny offset may be appropriate for a protected border, while a full-edge relief may need the boundary to extend to the stock edge.
6. Separate 3D and 2D edge work. Let the 3D toolpath handle curved surfaces and use a profile or pocket toolpath for a crisp frame, outside edge or registration feature.
7. Recalculate and simulate. Do not rely only on the toolpath lines in the 2D view. Run a 3D preview and inspect the perimeter from several angles.

Boundary strategy for roughing and finishing

Roughing and finishing do not always need identical boundaries. A roughing toolpath may use a slightly larger area to remove bulk efficiently, while the finishing toolpath can use a controlled vector that protects a border. However, the roughing area must not create a shoulder that blocks the finishing cutter from reaching the intended surface.

A common approach is to rough inside a rectangular or offset boundary, leaving a small amount of material for the finishing pass. Then run the finishing toolpath over the full decorative area. If the finishing boundary is much smaller than the roughing boundary, inspect the transition carefully for a visible ledge.

For a relief inside a frame, consider three operations:

• A roughing pass confined to the relief area and kept safely away from the frame.
• A finishing pass using a selected vector that reaches the planned relief perimeter.
• A separate 2D operation to define or clean the frame and outside edge.

This division gives you more control than asking one large 3D operation to carve the relief, flatten the background and create a crisp border simultaneously.

Offsets, margins and edge protection

Boundary offsets are a practical way to choose how close the cutter approaches an edge. An inward offset protects a border but can leave a narrow uncut strip. An outward offset helps the tool blend to the edge but may cut into the frame or run beyond the stock.

Before choosing an offset, consider the tool diameter, stepover, relief slope and final edge treatment. A ball-nose cutter does not cut a sharp vertical corner. If the design requires a hard edge, leave material for a dedicated profile or use a sacrificial border that can be trimmed later.

Also inspect the physical setup. A mathematically correct boundary is still unsafe if it brings the cutter over a clamp or too close to the edge of a thin blank. Solid workholding matters; review this CNC workholding guide before running a large relief.

For large designs split across multiple setups, treat each tile as its own material and boundary problem. Leave overlap where your software and registration method require it, and verify that the boundary does not create a visible seam. This guide explains the process in more detail: how to tile a large CNC relief carving.

Simulation checks that catch boundary mistakes

Simulation is where most boundary errors can be found before they become expensive. Rotate the preview and check the following:

• Does the cutter enter the frame, border or outside edge?
• Is there an uncut strip between the relief and the selected vector?
• Does the finishing pass blend smoothly into the roughing area?
• Are clamps, screws and spoilboard openings outside every toolpath?
• Does the preview show cutting beyond the stock or into a tiled seam?
• Is the remaining material what you expected at the perimeter?

Use the simulation's material-removal view rather than looking only at colored toolpath lines. If available, inspect the preview at an exaggerated scale and use a section or measurement tool. Pay particular attention to concave corners and steep relief edges, where a small boundary error is easiest to see.

For a first run, use a safe Z height and stand by the emergency stop. If the job is unfamiliar, consider running the toolpath in inexpensive test stock or cutting an outer boundary with a pen before committing to the final blank.

Example: a relief inside a decorative frame

Imagine placing a floral relief in a 12-by-24-inch wood panel with a two-inch frame around it. The stock boundary is the full 12-by-24-inch blank, but the 3D carving boundary should normally be the inner frame opening, not the entire material.

Draw a closed rectangle matching the inside of the frame and use it as the selected vector for roughing and finishing. Leave a small planned margin if the finishing tool needs additional blend room. Then create separate 2D operations for the frame or outside profile. This prevents the finishing tool from sweeping across the frame while still allowing the relief to reach its intended edges.

The same principle applies to a winged dragon panel. If the file is intended to be carved as a complete panel, the model boundary may be appropriate. If you are mounting the relief onto another board, use a selected vector around the actual raised design and preserve the surrounding material as a deliberate border. You can review suitable files such as the Winged Dragon Panel CNC Relief STL and Decorative Floral Tile Relief STL as examples of designs where the intended presentation affects the boundary decision.

Common mistakes and quick fixes

Frequently asked questions

Should I use the model boundary or material boundary?

Use the model boundary when you want to machine the complete relief area. Use the material boundary only when you intentionally want to cut across the full blank, such as for broad surfacing or a panel-wide background.

Can a machining boundary protect clamps?

Yes, if the boundary is positioned well inside the safe work area and every toolpath uses it. Still verify the toolpath and machine setup; a boundary is not a replacement for physical clearance checks.

Why does my finishing tool leave a rim?

The boundary may be too small, the model may include a built-in flat border, or the cutter may not have enough room to blend. Inspect the model extent, increase the selected-vector allowance and simulate the perimeter.

Do I need a separate profile toolpath?

Usually, yes, when you need a clean outside edge or a crisp frame. A 3D finishing toolpath is designed for curved surfaces and does not automatically create a sharp vertical edge.

Make boundary selection part of your setup checklist

Before cutting, confirm the stock size, model extent, boundary type, boundary offset, tool clearance and simulated result. Then verify workholding and make sure your spoilboard is flat enough for the required relief depth; this spoilboard surfacing guide covers that preparation.

Once the boundary is right, your feeds, speeds, stepover and cutter choice can do their job more effectively. For a broader setup review, see the guide to CNC relief carving settings.
